Why Are Pot Magnets Essential for Speakers and Modern Electronic Devices?

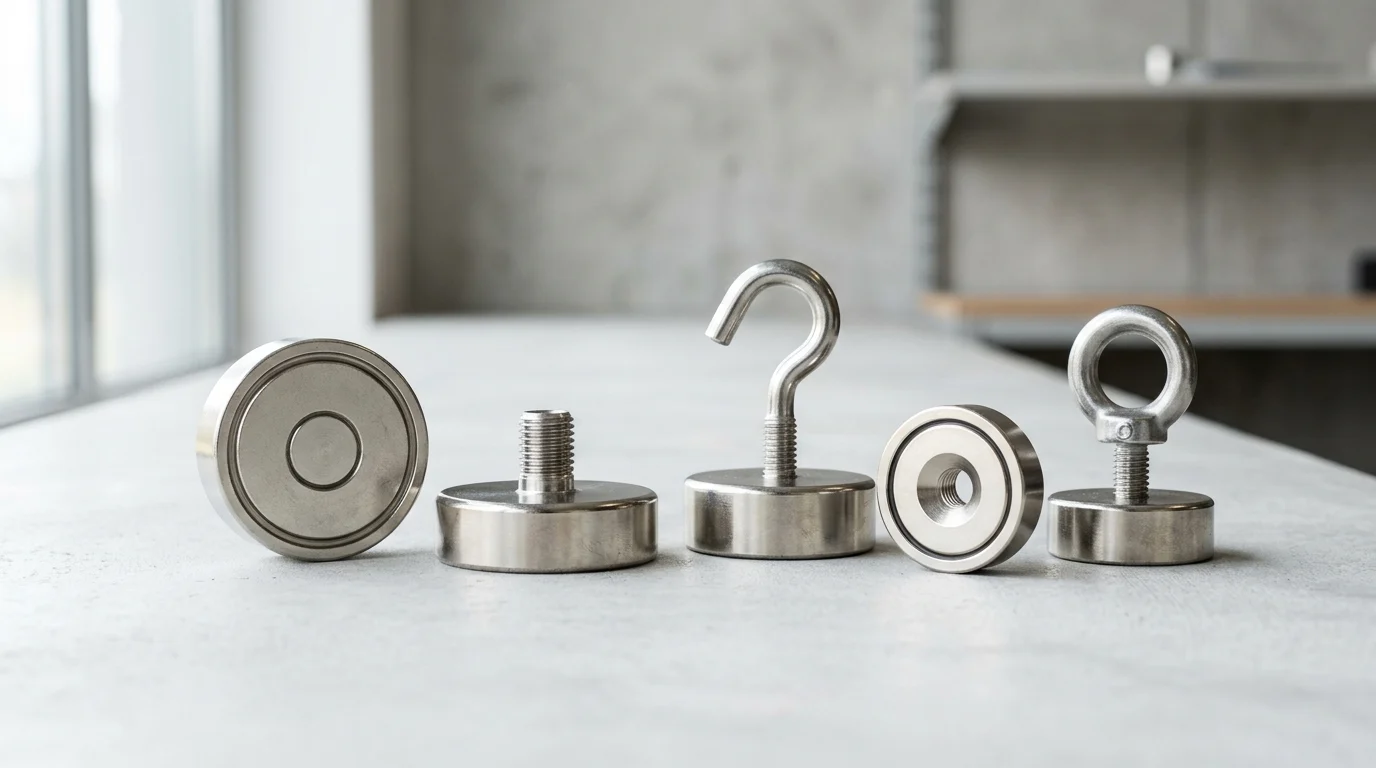

From compact speakers to haptic modules and secure electronic mounts, modern devices depend on magnetic assemblies that deliver high force in very little space. Pot magnets solve this challenge by enclosing a permanent magnet in a precisely formed metal cup, focusing magnetic flux toward the working face instead of allowing it to disperse. That design can significantly improve holding force, reduce stray fields, and help engineers use less rare-earth material without sacrificing performance. This article explains how pot magnets work, why they matter in speaker and electronics design, and what buyers should consider when specifying them for reliable, space-efficient products.

Why Pot Magnets Matter in Speakers and Modern Electronics

The continuous drive toward miniaturization in modern electronics demands components that deliver maximum performance within strictly confined spatial footprints. Magnetic assemblies are central to this design challenge, providing the necessary flux for electro-acoustic transducers, haptic motors, and secure fastening mechanisms. Among these assemblies, pot magnets—a permanent magnet encased within a precisely machined steel shell—have emerged as an indispensable engineering solution. While they introduce a weight penalty and possess a shallow magnetic reach, their ability to manipulate magnetic fields with exceptional accuracy ensures that flux is directed exactly where it is required rather than dissipating into surrounding space.

Understanding the functional superiority of pot magnets is critical for effective component specification. The assembly does not merely protect the brittle magnetic core; it actively alters the magnetic circuit. This structural advantage directly translates to enhanced device performance, reduced material costs, and improved durability, making pot magnets a staple in both consumer and commercial electronics.

Strategic Role in Compact Magnetic Design

Pot magnets serve a highly specific purpose: magnetic flux concentration. In a standard bare magnet, the magnetic field radiates symmetrically from both the north and south poles, resulting in significant flux leakage and a diluted holding force. A pot magnet addresses this inefficiency by utilizing a ferromagnetic steel cup to encapsulate one pole and redirect its magnetic lines of force toward the open, active face. This engineered pathway effectively closes the magnetic circuit on three sides.

The result is a dramatic amplification of the magnetic field at the working surface. Under ideal laboratory conditions, a neodymium pot magnet can generate a holding force 300% to 400% greater than a bare neodymium magnet of identical volume. While real-world manufacturing variances and imperfect mating surfaces often result in a lower practical multiplier, the gains remain substantial. In compact electronic designs where vertical spatial constraints are strictly limited—often to tolerances of less than 2.0 mm—this concentration of force allows designers to specify significantly smaller magnetic volumes without sacrificing mechanical grip or acoustic output. Furthermore, the containment of the magnetic field minimizes electromagnetic interference (EMI), protecting nearby sensitive components such as microprocessors and Hall-effect sensors from stray magnetic flux.

Commercial Pressures Driving Adoption

Beyond spatial efficiency, the widespread adoption of pot magnets in high-volume electronics is heavily driven by commercial and supply chain pressures. The global market for rare-earth materials, particularly neodymium and dysprosium, is notoriously volatile. This volatility is compounded by supply chain concentration risks—specifically China's historical dominance in rare-earth mining, processing, and magnet manufacturing. With recent geopolitical developments and export controls occasionally threatening availability, manufacturers face constant pressure to optimize material usage and reduce reliance on raw NdFeB.

By utilizing a low-carbon steel cup to amplify the magnetic field, designers can reduce the actual volume of the rare-earth magnet by up to 40% while achieving the required flux density at the assembly's surface. The substitution of expensive rare-earth alloys with highly affordable stamped or machined steel yields a significantly lower bill of materials (BOM) cost per unit. Additionally, the integrated steel housing simplifies automated assembly processes. Pick-and-place machines can handle the steel exterior with standard vacuum nozzles or mechanical grippers without risking the micro-fractures and chipping that frequently occur when handling brittle bare magnets at high speeds on automated production lines.

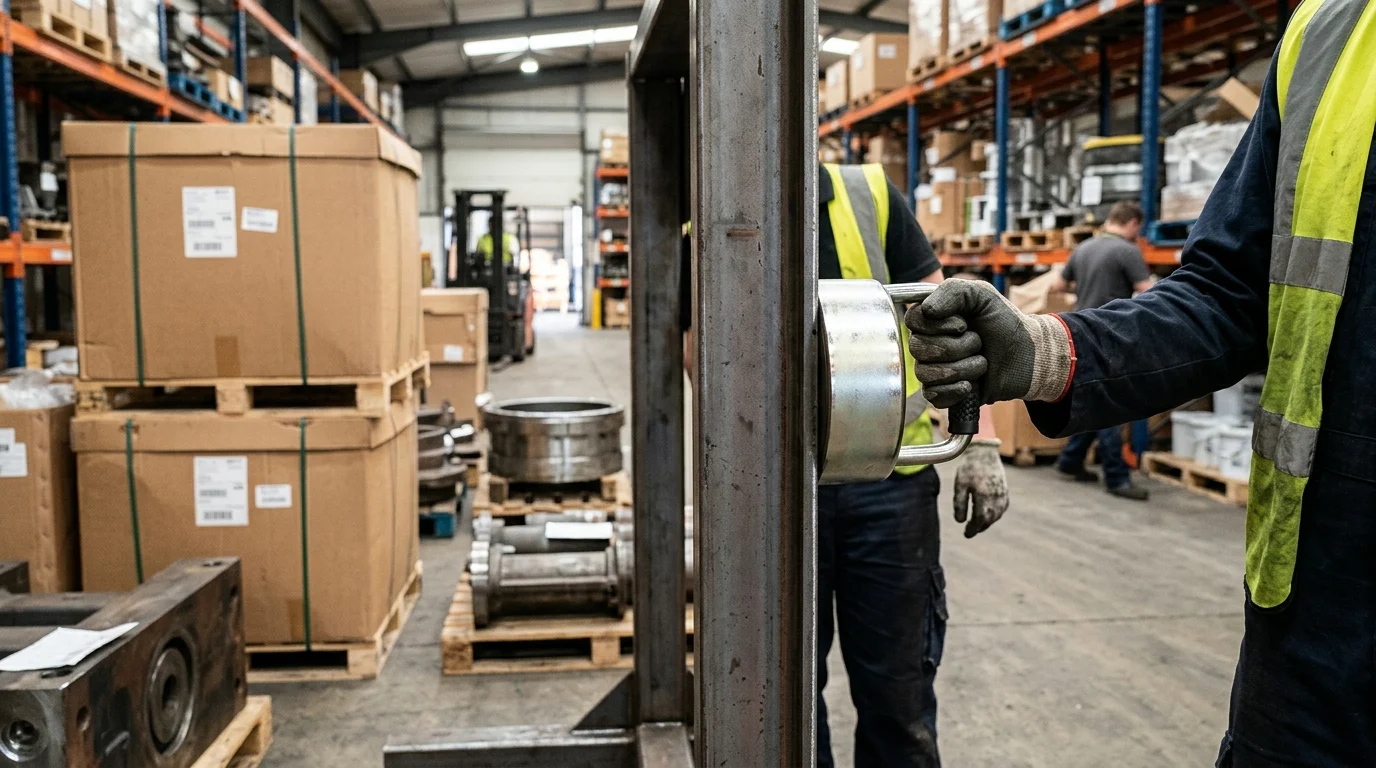

What Pot Magnets Are and How They Work

Examining a pot magnet requires looking at it not as a single component, but as a carefully calibrated magnetic circuit. When engineered correctly, the physical mechanics of this assembly maximize the residual magnetic induction at the active face while shielding the rest of the component from flux leakage.

Core Components: Steel Cup, Magnet, and Air Gap

A standard pot magnet assembly relies on three elements: a ferromagnetic steel cup, a permanent magnet core, and a non-magnetic spacer. The assembly's performance depends entirely on how these constituent parts interact, making the precise geometry of their arrangement critical.

The steel cup, typically manufactured from A3 grade or 1010 low-carbon steel, serves as the primary conduit for the magnetic flux. Its thickness must be carefully calculated. If the steel is too thin, it reaches magnetic saturation (typically around 1.6 to 2.1 Tesla for low-carbon variants), causing flux to leak through the back of the cup. If it is too thick, it adds unnecessary weight and volume.

The permanent magnet is positioned centrally within the cup, separated from the inner steel walls by a non-magnetic material such as brass, aluminum, or high-temperature epoxy. This spacer creates a critical air gap, preventing the magnet's side fields from short-circuiting directly into the steel before reaching the open face. While the tolerance of this air gap is remarkably strict—sometimes machined to within ±0.05 mm in ideal batches—standard high-volume production variances are often wider. Designers must build realistic margins into their specifications, as even microscopic variations can alter the shape and intensity of the magnetic field delivered to the target application.

Neodymium vs Ferrite Pot Magnets

The choice of magnetic core material dictates the operational envelope of the entire assembly. Neodymium (NdFeB) and Ferrite (ceramic) represent the two dominant materials utilized in electronic pot magnets, each presenting distinct advantages and limitations.

Neodymium variants are the default choice for modern mobile electronics and micro-speakers where maximum flux density per cubic millimeter is the primary constraint. However, in automotive electronics or high-power public address speakers where operating temperatures routinely exceed 120°C, ferrite pot magnets are often specified to prevent irreversible thermal demagnetization, despite requiring a larger physical footprint to achieve comparable magnetic strength.

Key Specifications Engineers Should Define

When integrating pot magnets into electronic assemblies, critical parameters must be defined beyond simple outer dimensions. Specifying the required Pull Force (measured in Newtons) is foundational, but it must be contextualized by the thickness and surface finish of the target mating material. A pot magnet rated for 100N on a 10mm thick, ground steel plate may only deliver 30N on a 2mm thick sheet metal chassis due to early magnetic saturation of the thin target.

Additionally, the Coercive Force (Hc) and Intrinsic Coercivity (Hcj) must be defined to ensure the magnet resists demagnetization from opposing fields generated by nearby voice coils or power lines. Dimensional tolerances are equally critical; standard outer diameter (OD) tolerances are typically ±0.1 mm, but precision electronic fits may require tighter controls. Finally, environmental protection must be specified. For neodymium cores, a standard Nickel-Copper-Nickel (Ni-Cu-Ni) triple plating is typical, but ruggedized outdoor electronics may dictate specialized epoxy coatings capable of withstanding prolonged salt spray testing.

How Pot Magnets Improve Speaker Performance

In electro-acoustic engineering, the primary benefits of a pot magnet are reduced harmonic distortion and improved acoustic sensitivity. These concrete advantages stem directly from the quality of the speaker's magnetic motor structure. The voice coil, which drives the speaker cone to produce sound, operates within a narrow magnetic gap. The primary objective of the speaker's magnetic assembly is to provide a highly concentrated, perfectly uniform, and stable magnetic field within this specific gap. Pot magnets are uniquely suited to fulfill this requirement, offering substantial acoustic benefits over traditional bare magnet configurations in compact designs.

Magnetic Flux Control and Acoustic Stability

To achieve high sensitivity and rapid transient response, a micro-speaker voice coil typically requires a magnetic flux density between 0.8 and 1.2 Tesla concentrated entirely within a gap that may be less than 1.0 mm wide. The steel architecture of a pot magnet channels the internal magnetic field directly into this annular gap.

This concentration minimizes flux variations along the voice coil's path of travel. Acoustic stability relies heavily on this uniformity; if the magnetic field weakens at the extremes of the voice coil's excursion, the resulting non-linear force generates harmonic distortion, degrading audio fidelity. Furthermore, the closed-loop nature of the pot magnet prevents stray flux from leaking outward. In compact devices like smartphones or laptops, preventing this magnetic leakage is vital to ensure the speaker does not interfere with adjacent compass modules, inductive charging coils, or solid-state storage drives.

Pot Magnets vs Bare Magnets

Comparing pot magnets directly against bare magnets in speaker applications highlights why the former are highly effective for cost-sensitive and compact audio drivers. While premium high-fidelity speakers often rely on alternative topologies—such as underhung or overhung voice coils and neodymium ring motors—pot magnets dominate where space and budget are constrained.

The superior mechanical durability of the pot magnet cannot be overstated. Neodymium is an inherently brittle sintered material. During the automated assembly of speaker drivers, bare magnets are highly susceptible to micro-fracturing when subjected to the sudden impact forces of automated insertion. The steel cup of a pot magnet acts as a protective armor, absorbing insertion shocks and virtually eliminating magnet-related yield losses on the production line.

Performance Trade-Offs and Design Limits

Despite their advantages in flux concentration and durability, pot magnet architectures introduce specific mechanical trade-offs that must be managed. The most prominent constraint is the weight penalty imposed by the steel cup. In a typical compact pot magnet assembly weighing 10 grams, the steel housing may account for 6 to 7 grams of the total mass. For ultra-lightweight wearable devices, this added mass requires careful evaluation.

Additionally, designers face strict geometric limits regarding the depth of the magnetic field. While pot magnets excel at providing tremendous holding force or flux density at direct contact or within microscopic air gaps, their magnetic reach is exceptionally shallow. The field strength drops off exponentially faster than that of a bare magnet as the distance from the active face increases. Therefore, a speaker's voice coil must be engineered to operate entirely within this shallow, high-density zone. If the coil's excursion pushes it outside the immediate boundary of the pot magnet's active face, the driving force will collapse, leading to severe acoustic clipping.

Applications Beyond Speakers

While synonymous with acoustic transducers, the flux-concentrating principles of pot magnets have facilitated their integration across a broad spectrum of modern electronic devices. Any application requiring robust holding force, precise actuation, or localized magnetic sensing within a constrained spatial envelope can benefit from the shielded, directional magnetic field that a pot magnet provides.

Uses in Modern Electronic Devices

Modern consumer and commercial electronics rely heavily on precise magnetic actuation and secure, temporary fastening. In tablet computers and convertible laptops, miniature pot magnets are embedded within the chassis and display bezels to create satisfying, self-aligning closure mechanisms. These applications often require a holding force ranging from 10N to 50N, which must be delivered without the magnetic field penetrating the LCD panel or digitizer layer—a feat made possible by the pot magnet's steel shielding.

Beyond closures, pot magnets are integral to the function of advanced linear resonant actuators (LRAs) found in smartphones and gaming controllers. In these haptic motors, the pot magnet's concentrated flux creates a stronger, more responsive magnetic spring effect. This allows for faster acceleration and deceleration of the internal oscillating mass, translating to the crisp, precise tactile feedback expected in modern devices. In smart automation, heavy-duty pot magnets are utilized in automated electronic testing equipment and sensor triggers, where reliable performance is required across millions of cyclic operations.

Custom Pot Magnet Design Considerations

When standard off-the-shelf configurations fail to meet specific integration requirements, custom pot magnet designs become necessary. Customization typically begins with the mechanical interface. Depending on the assembly process, pot magnets can be machined with internal threaded holes, external threaded studs, or countersunk bores to accommodate standard machine screws. The precision of these mechanical features is paramount; a slight misalignment in a threaded stud can induce lateral stress on the magnet core during installation, potentially compromising the epoxy seal.

Custom plating and sealing are equally critical for specialized environments. While standard Ni-Cu-Ni plating is sufficient for climate-controlled consumer electronics, devices deployed in ruggedized outdoor environments require enhanced protection. Zinc plating, thick epoxy coatings, or even fully enclosed stainless-steel housings may be specified to achieve IP67 or IP68 waterproof ratings. These custom housings must be meticulously calculated to account for the increased air gap introduced by the thicker protective layers, which will inherently reduce the surface pull force.

Reliability Risks to Control

Deploying magnetic assemblies in dynamic electronic environments introduces several reliability risks that must be controlled through rigorous specification and testing. Thermal demagnetization remains a primary concern. High-performance processors and power management ICs generate substantial heat; if a standard N35-grade neodymium pot magnet (rated for an 80°C maximum operating temperature) is placed near a thermal exhaust routing 90°C air, it will suffer irreversible flux loss, degrading the device's mechanical or acoustic performance. Specifying high-coercivity grades (such as N35SH or N40UH, where the suffix denotes high-temperature resistance up to 150°C and 180°C respectively) is essential in thermal proximity zones.

Mechanical shock presents another significant risk. Consumer electronics are frequently subjected to standard industry drop tests onto hard surfaces. The impact forces can cause the internal magnet core to break free from the steel cup if the adhesive spacer fails. To mitigate this, manufacturers must utilize high-shear-strength industrial epoxies and ensure strict curing profiles during assembly. Additionally, the risk of galvanic corrosion must be managed if the pot magnet's steel cup is placed in direct contact with dissimilar metals (like a magnesium laptop chassis) in the presence of humidity, necessitating the use of dielectric films or specialized passivating coatings.

How to Select Pot Magnets for Reliable Use

Transitioning a pot magnet design from prototype to high-volume manufacturing requires a strategic approach to procurement. Selecting the right component involves balancing absolute magnetic performance with mechanical tolerances, environmental resilience, and supply chain stability. Establishing a rigorous selection and validation framework is the only way to ensure that the magnets delivered in the tenth production run perform identically to those in the first.

Sourcing, Quality, and Compliance Checks

Rigorous supplier validation acts as the first line of defense against sub-standard magnetic assemblies. It is vital to verify that magnet manufacturers hold relevant quality management certifications, such as ISO 9001 for general electronics or IATF 16949 for automotive applications. Compliance with environmental directives is essential for global market access; suppliers must provide material declarations proving RoHS and REACH compliance, ensuring that restricted substances like lead (Pb) and cadmium (Cd) remain well below regulatory thresholds.

Quality control metrics must be explicitly defined in the purchasing agreement. High-tier suppliers should utilize automated flux mapping and pull-force testing on the production line, targeting exceptionally low defect rates. Furthermore, clear expectations regarding Minimum Order Quantities (MOQs) should be established. While prototyping may require only a few dozen units, production MOQs for standard pot magnets typically range from 1,000 to 5,000 pieces, whereas custom geometries may require larger MOQs to justify the setup of specialized machining and plating lines.

Standard vs Custom Pot Magnets

The decision between standard off-the-shelf assemblies and custom geometries profoundly impacts both project timelines and budgets. Standard pot magnets offer significant advantages in speed and cost. Because the tooling for the steel cups already exists and production lines are optimized, lead times for standard units typically range from 1 to 3 weeks. They carry no Non-Recurring Engineering (NRE) fees and benefit from economies of scale, making them highly cost-effective for rapid hardware iterations.

Conversely, custom pot magnets allow for precise alignment with complex mechanical constraints and highly specific flux density requirements. However, this optimization comes at a cost. Custom designs require bespoke tooling for stamping or machining the steel cups, as well as specialized fixtures for magnetizing and testing. This introduces NRE costs and extends initial lead times. The performance gains of a custom design must be carefully evaluated to determine if they justify the extended time-to-market and increased upfront capital expenditure.

Final Selection Framework

A comprehensive selection framework formalizes the procurement process, ensuring no critical variables are overlooked. The process must begin with a clear definition of the primary operational requirement: is the goal to achieve a specific holding force, or to deliver a precise flux density into a defined air gap? Once the primary metric is established, the environmental boundaries must be defined, specifically the peak operating temperature and potential exposure to moisture or corrosive agents, which will dictate the choice between Neodymium and Ferrite, as well as the necessary plating.

Following material selection, the mechanical interface must be locked down, detailing exact dimensions, tolerances, and fastening methods (threads, press-fits, or adhesives). Finally, the framework must establish the QA protocols, requiring the supplier to provide demagnetization curves (B-H curves) at the target operating temperatures and statistical process control (SPC) data for critical dimensions. By adhering to this structured approach, manufacturers can confidently integrate pot magnets that deliver flawless performance and long-term reliability in any modern electronic device.

Key Takeaways

• Use pot magnets when a compact design needs concentrated magnetic force at one working face rather than a broad, unfocused field.
• A neodymium pot magnet can provide 300% to 400% higher holding force than a bare magnet of similar volume under ideal laboratory conditions.
• Designers should account for the shallow magnetic reach of pot magnets by minimizing air gaps and using clean, flat ferromagnetic mating surfaces.
• Steel-cased pot magnets can help reduce stray magnetic flux and protect nearby components such as Hall-effect sensors and microprocessors from interference.
• Optimized pot magnet assemblies can reduce required NdFeB volume by up to 40%, helping control material cost and rare-earth supply risk.
• For reliable specification, evaluate pull force, mounting type, diameter, coating, and real installation conditions rather than relying only on catalog ratings.

Frequently Asked Questions

What is a pot magnet?

A pot magnet is a permanent magnet, often NdFeB or ferrite, set inside a steel or metal cup. The housing protects the magnet and redirects magnetic flux toward the active face for stronger, more controlled holding.

Why are pot magnets useful in speakers?

Speakers need strong, focused magnetic fields in limited space. Pot magnets help concentrate flux where the voice coil operates, supporting efficient acoustic output while reducing wasted magnetic energy around nearby components.

How much stronger is a pot magnet than a bare magnet?

Under ideal conditions, a neodymium pot magnet can deliver about 300% to 400% more holding force than a bare magnet of similar volume. Actual performance depends on surface flatness, air gaps, coating, and installation.

Do pot magnets help reduce electromagnetic interference?

Yes. The steel cup helps contain and redirect magnetic flux, reducing stray fields. This is valuable in compact electronics where sensors, microprocessors, and other sensitive parts are placed close to magnetic assemblies.

Can pot magnets reduce rare-earth material usage?

Yes. By improving flux concentration, a pot magnet design may reduce the required NdFeB magnet volume by up to 40% while still meeting target surface flux or holding-force requirements.
