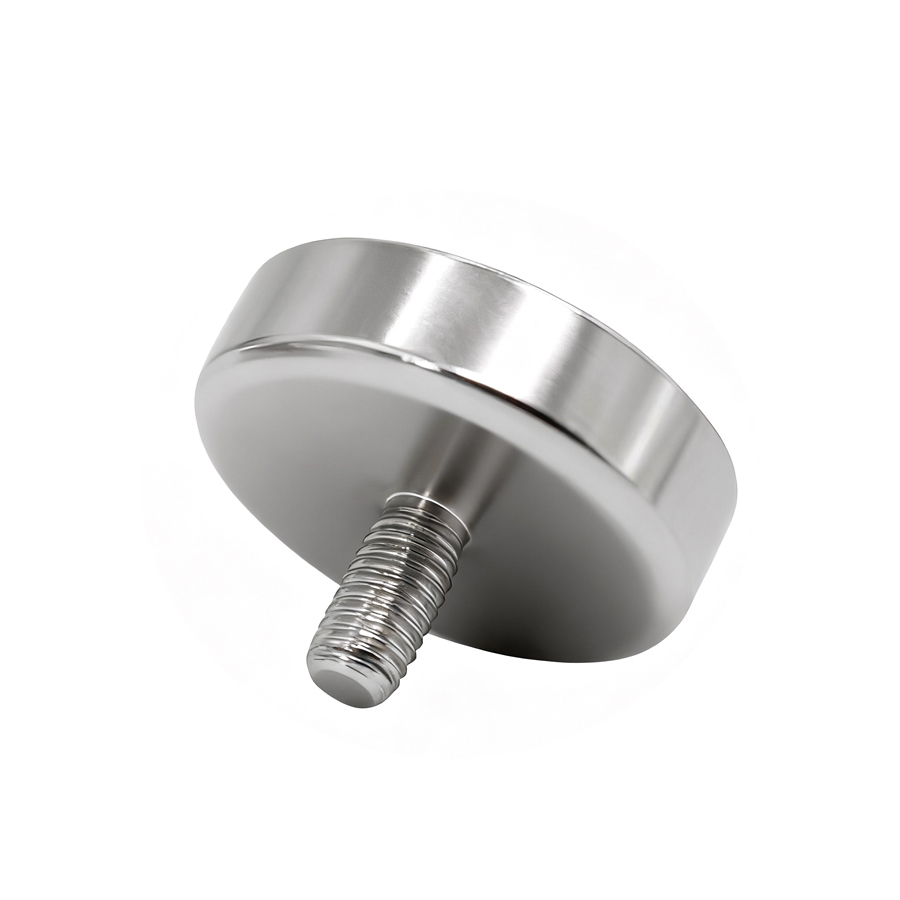

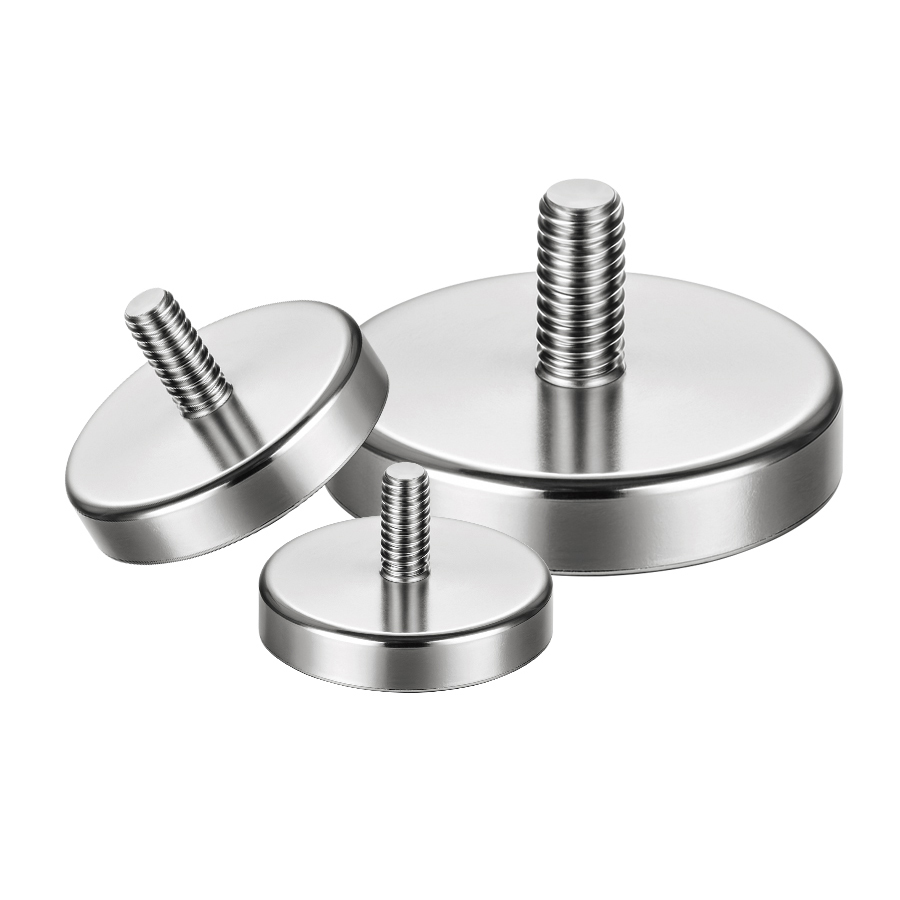

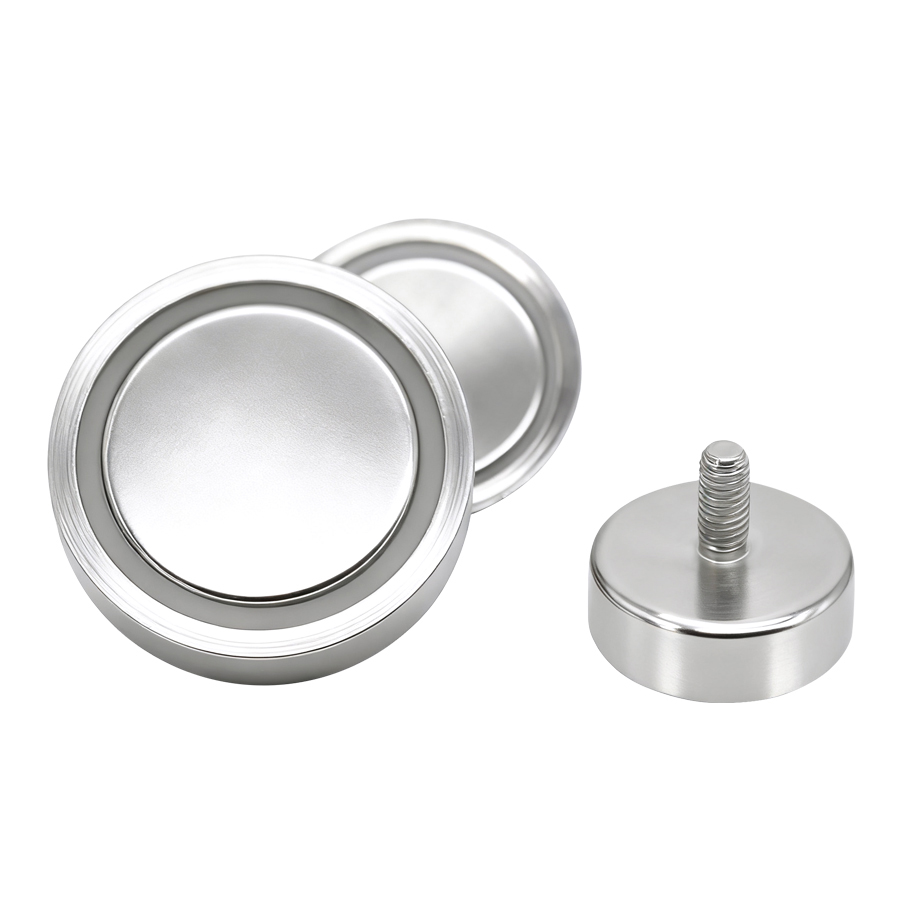

Pot magnet with EXTERNAL THREAD (C series, dimension from 10 to 90mm)
Short Description:
With External thread on the shell, the pot is very easily stalled on the components. Don’t worry the magnet would fall out due to its strong pull force, We apply Strong anaerobic adhesive and excellent dimensional accuracy control.
Product Detail

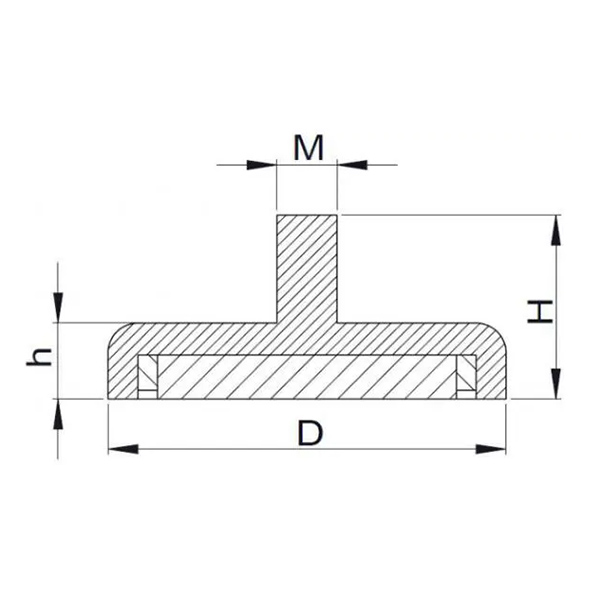

| Model | D(mm) | d(mm) | d1(mm) | H(mm) | Weight(g) | pull Force(kg) |
| PMYP-C10 | 10 | 3 | 12 | 4.5 | 2.8 | 1-2 |
| PMYP-C12 | 12 | 3 | 12 | 4.5 | 3.5 | 2-3 |
| PMYP-C16 | 16 | 4 | 14.5 | 5 | 7 | 6-8 |
| PMYP-C20 | 20 | 4 | 17 | 7 | 14 | 11-15 |
| PMYP-C25 | 25 | 5 | 17 | 8 | 25 | 20-25 |
| PMYP-C32 | 32 | 6 | 18 | 8 | 40 | 35-40 |
| PMYP-C36 | 36 | 6 | 22 | 8 | 50 | 40-50 |
| PMYP-C42 | 42 | 6 | 23 | 9 | 80 | 60-75 |
| PMYP-C48 | 48 | 8 | 24 | 11.5 | 140 | 85-100 |
| PMYP-C60 | 60 | 8 | 30 | 15 | 260 | 120-150 |
| PMYP-C75 | 75 | 10 | 32 | 18 | 475 | 220-250 |
| PMYP-C90 | 90 | 10 | 35 | 18 | 870 | 280-360 |
