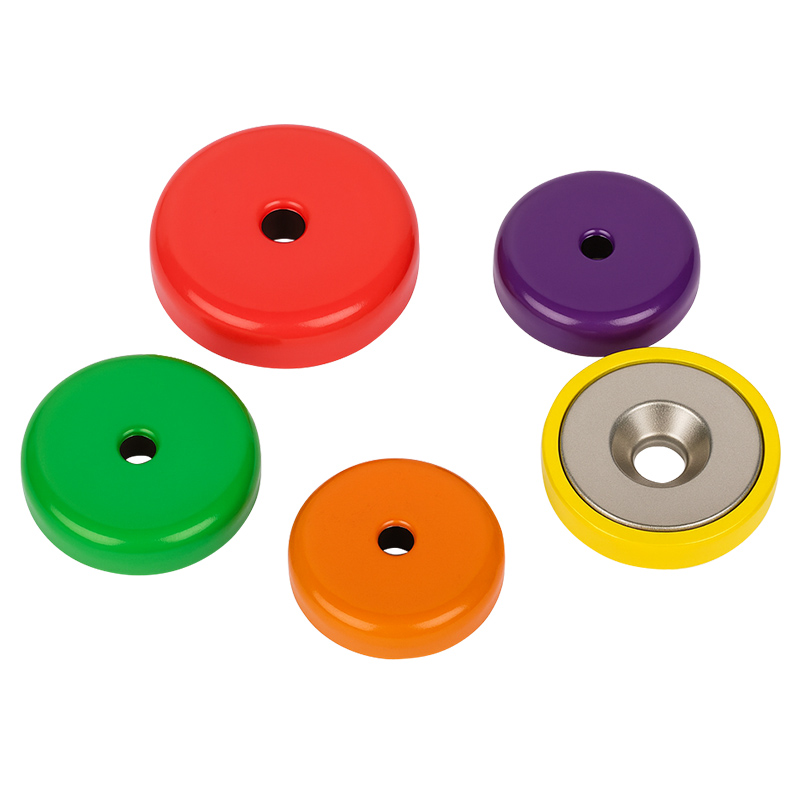

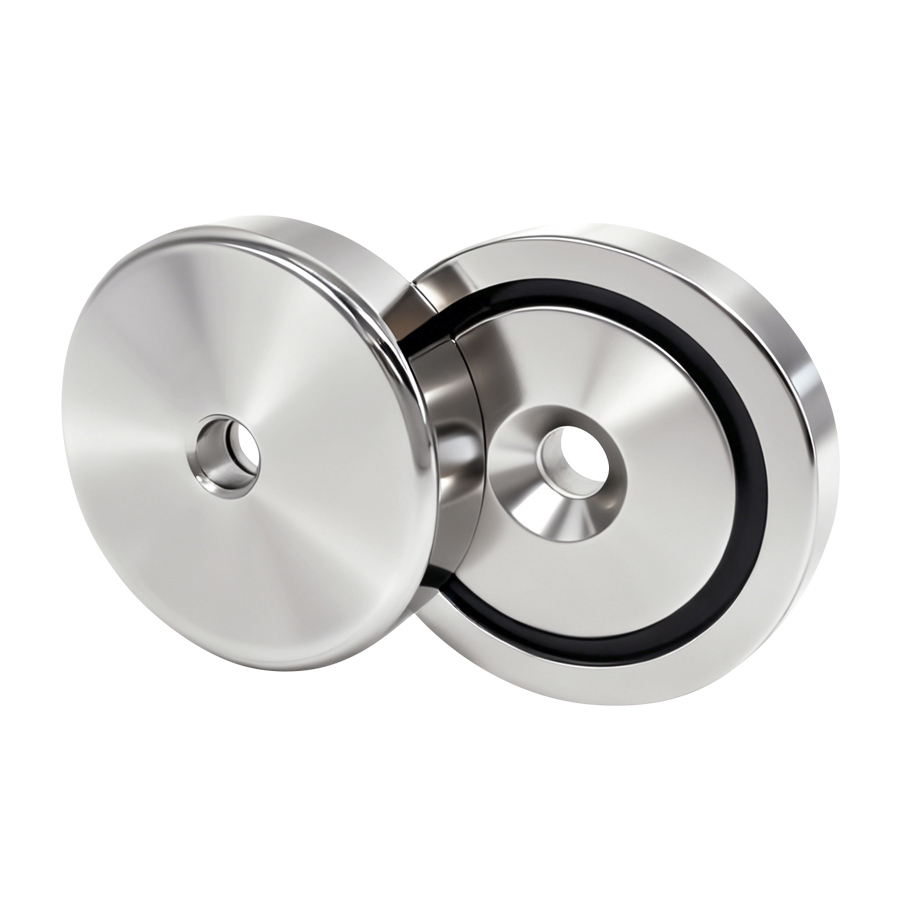

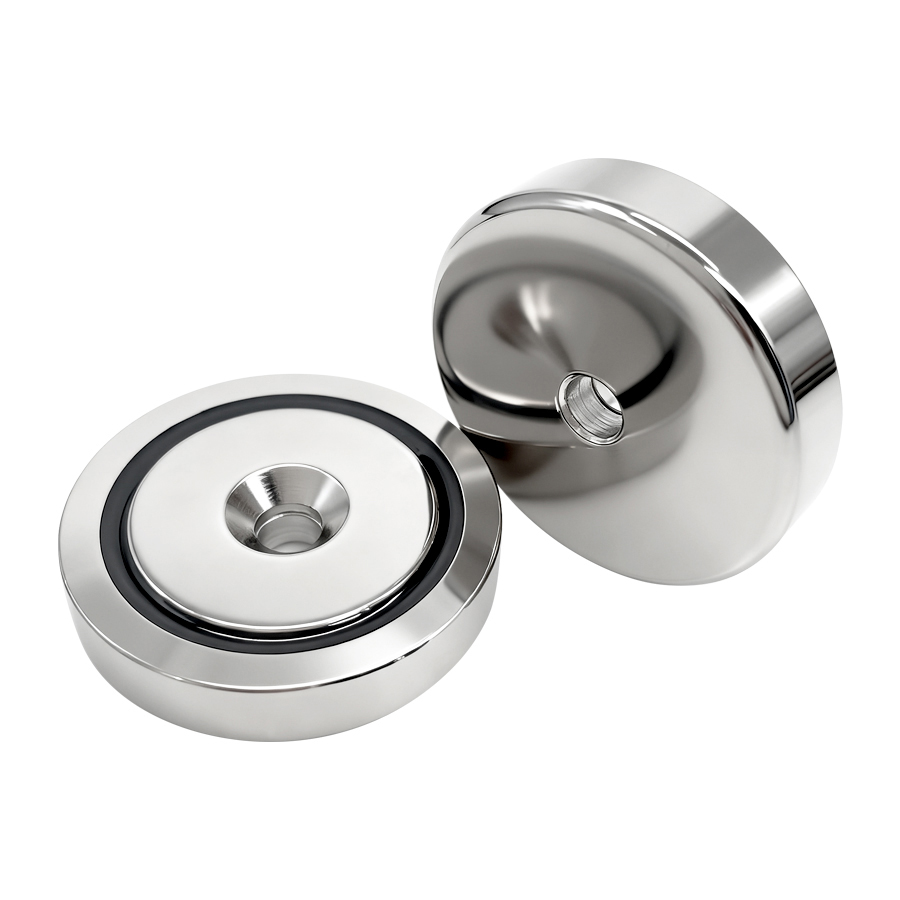

Pot magnet with Countersunk hole (A series, dimension from 10 to 90mm)
Short Description:
This pot magnet is a counterbore designed for the screw through, and we support applying the National or American sinking hole standard(90°or 82°).
The size of these pots is from 10mm to 90mm, also support the customers’ design with direct factory manufactory price. Or, you could tell us your requirements for pull force, we can also recommend or design a pot magnet for you! Our magnetic power could be 1kg~500kg!
Also, the cladding material is also could be chosen, like Ni/Cr/Zn or some others for outlook and corrosion resistance requirements.
Product Detail

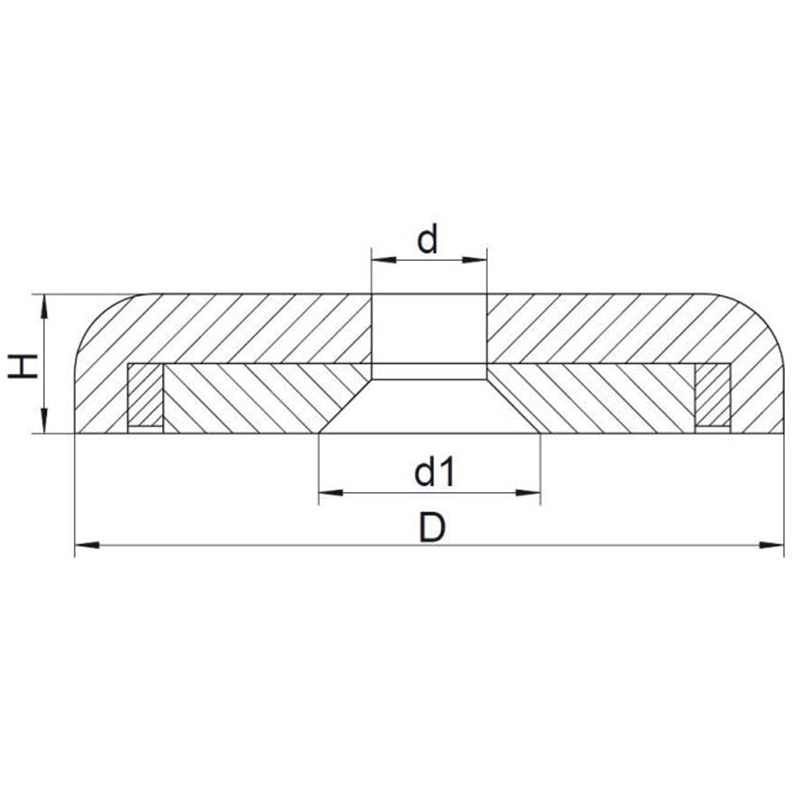

| Model | D(mm) | d(mm) | d1(mm) | H(mm) | Weight(g) | Pull Force(kg) |
| PMYP-A10 | 10 | 3.5 | 6 | 4.5 | 3 | 1-2 |
| PMYP-A12 | 12 | 3.5 | 6 | 4.5 | 4 | 2-3 |
| PMYP-A16 | 16 | 3.5 | 6 | 5 | 5.5 | 6-8 |
| PMYP-A20 | 20 | 4.5 | 8.3 | 7 | 12 | 11-15 |
| PMYP-A25 | 25 | 5.5 | 10 | 8 | 21 | 20-25 |
| PMYP-A32 | 32 | 5.5 | 10 | 8 | 37 | 35-40 |
| PMYP-A36 | 36 | 5.5 | 10 | 8 | 45 | 40-50 |
| PMYP-A42 | 42 | 6.3 | 12 | 9 | 72 | 60-75 |
| PMYP-A48 | 48 | 8.3 | 17 | 11.5 | 125 | 85-100 |
| PMYP-A60 | 60 | 8.3 | 17 | 15 | 250 | 120-150 |
| PMYP-A75 | 75 | 10.3 | 18 | 18 | 465 | 220-250 |
| PMYP-A90 | 90 | 11.5 | 20 | 18 | 860 | 280-360 |
