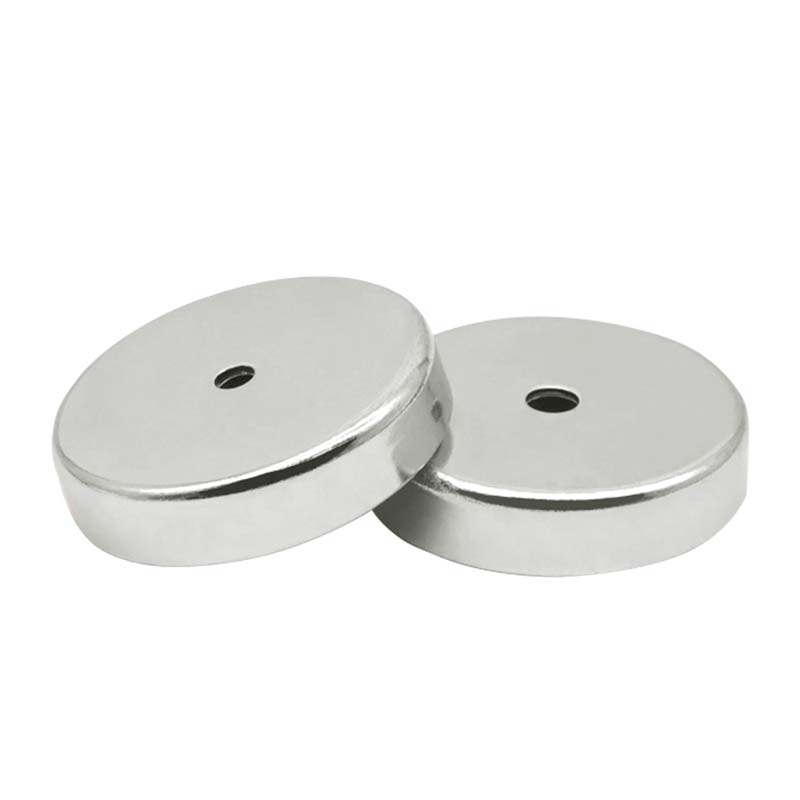

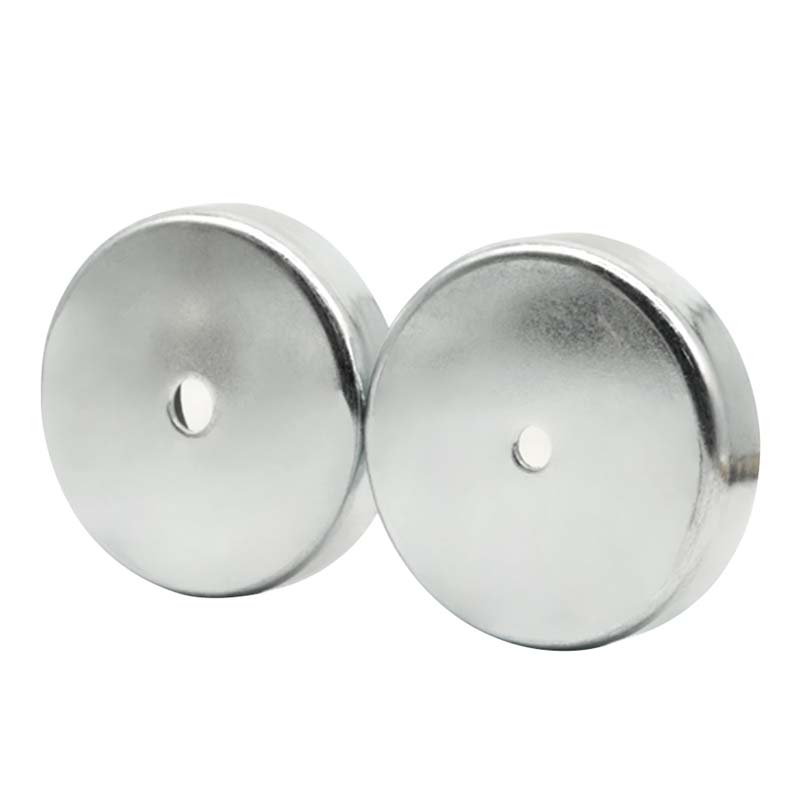

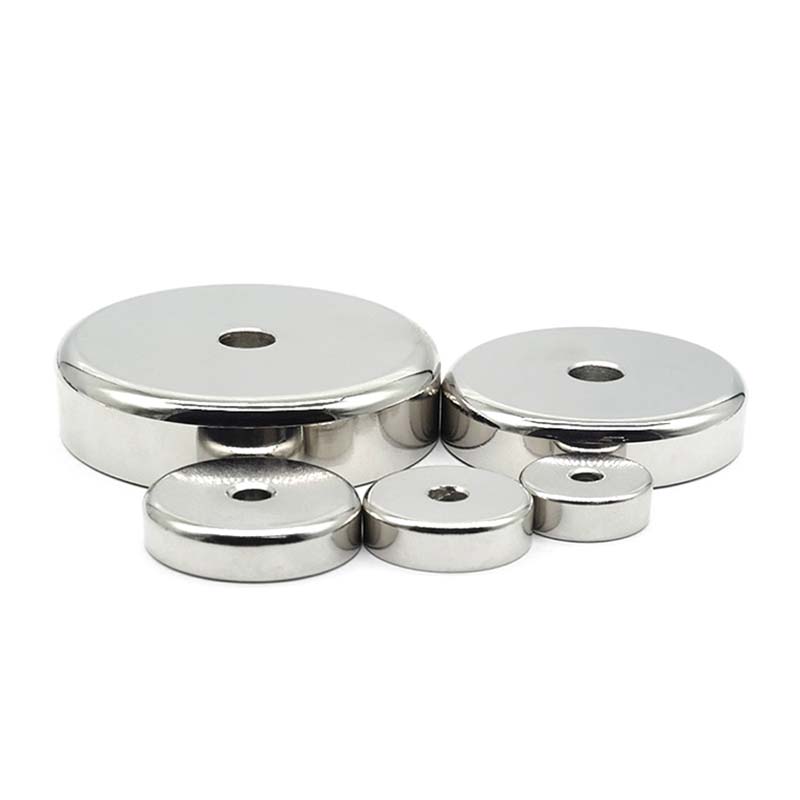

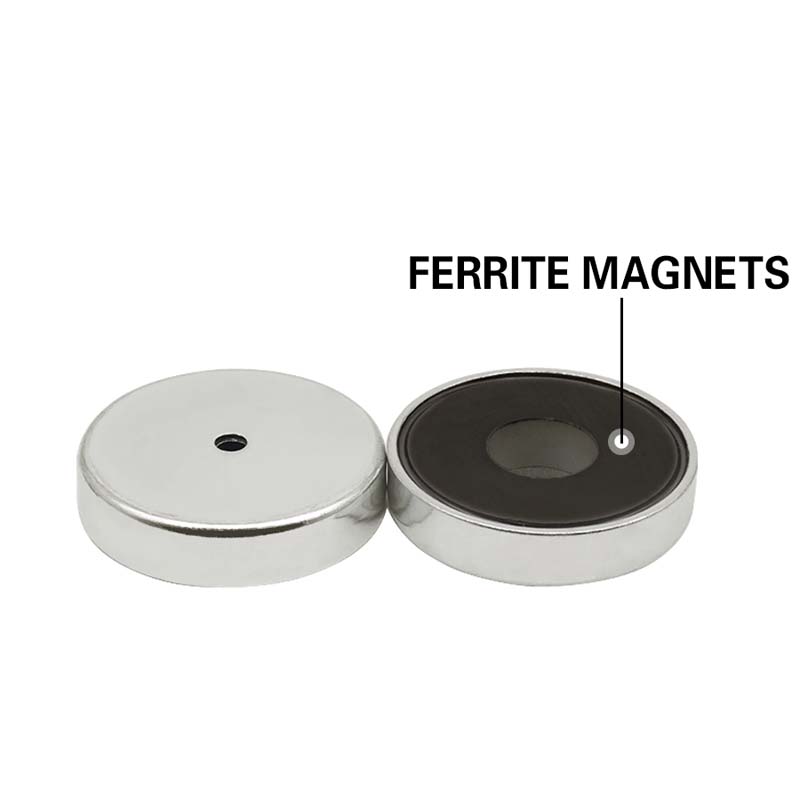

FERRITE POT magnet with straight hole (FA series)
Short Description:
Ferrite magnet is very common in our magnetic link area, it is cheap and has High-temperature resistance performance compared with NdFeB magnet. The pull force is from 1.5kg to 120kg, while the size of the pot is from 16mm to 125mm.
Product Detail
| Mode | D (mm) | d (mm) | H (mm) | Weight (g) | pull Force (kg) |
| FA16 | 16 | 4.5 | 4.5 | 5 | 1.5 |
| FA20 | 20 | 4.5 | 6 | 10 | 2 |
| FA25 | 25 | 5.5 | 7 | 18 | 3 |
| FA32 | 32 | 5.5 | 7 | 28 | 7 |
| FA36 | 36 | 5.5 | 7.5 | 38 | 9 |
| FA40 | 40 | 6.5 | 8 | 52 | 11 |
| FA47 | 47 | 6.5 | 9 | 80 | 16 |
| FA50 | 50 | 6.5 | 10 | 100 | 20 |
| FA57 | 57 | 6.5 | 10.5 | 140 | 25 |
| FA63 | 63 | 6.5 | 14 | 230 | 32 |
| FA80 | 80 | 10.5 | 18 | 450 | 55 |
| FA100 | 100 | 12.5 | 22 | 900 | 85 |
| FA125 | 125 | 14.5 | 26 | 1500 | 120 |
