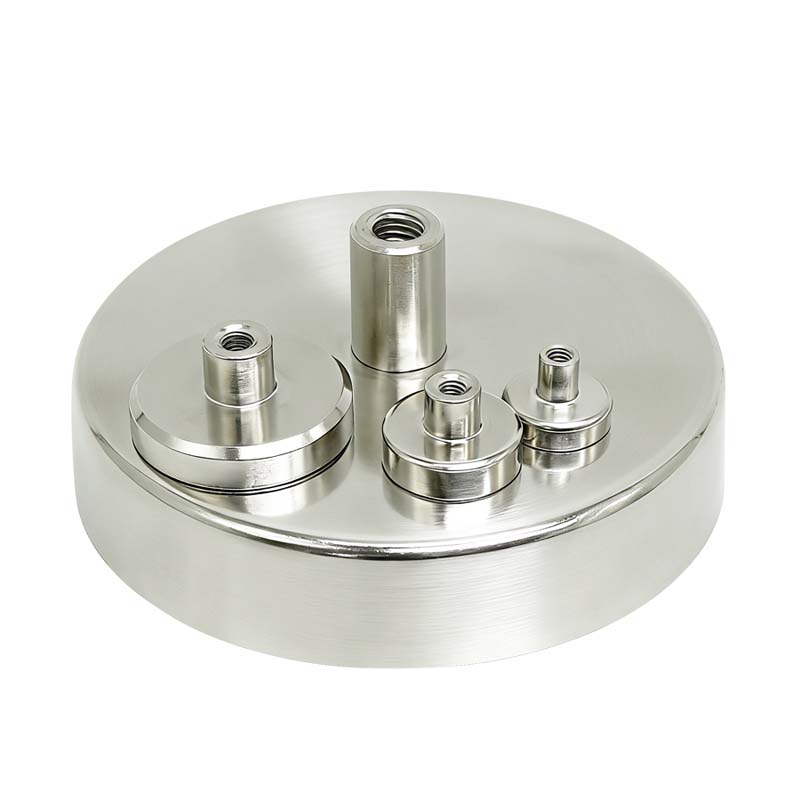

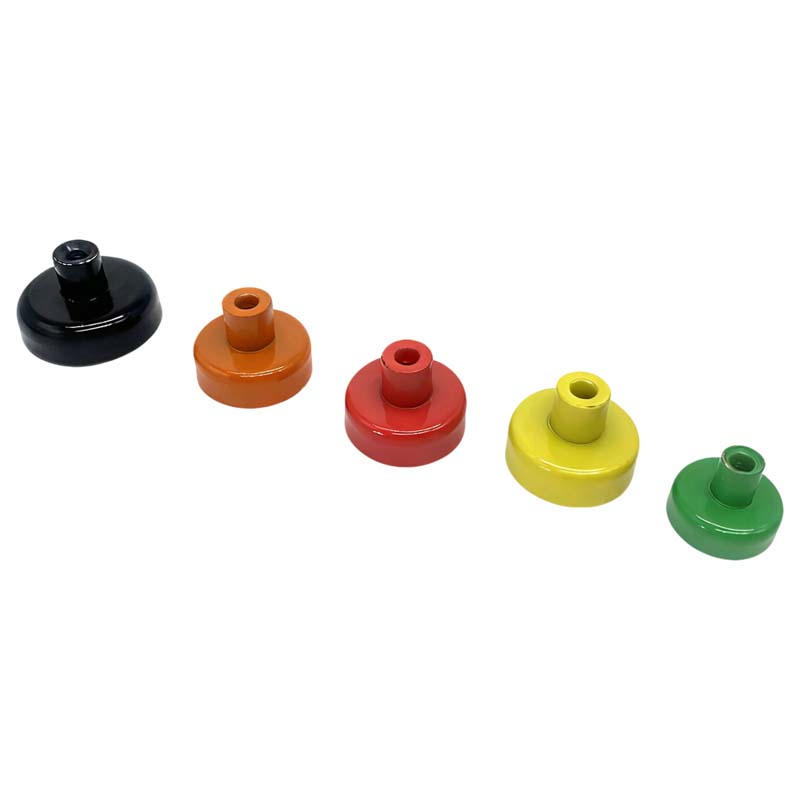

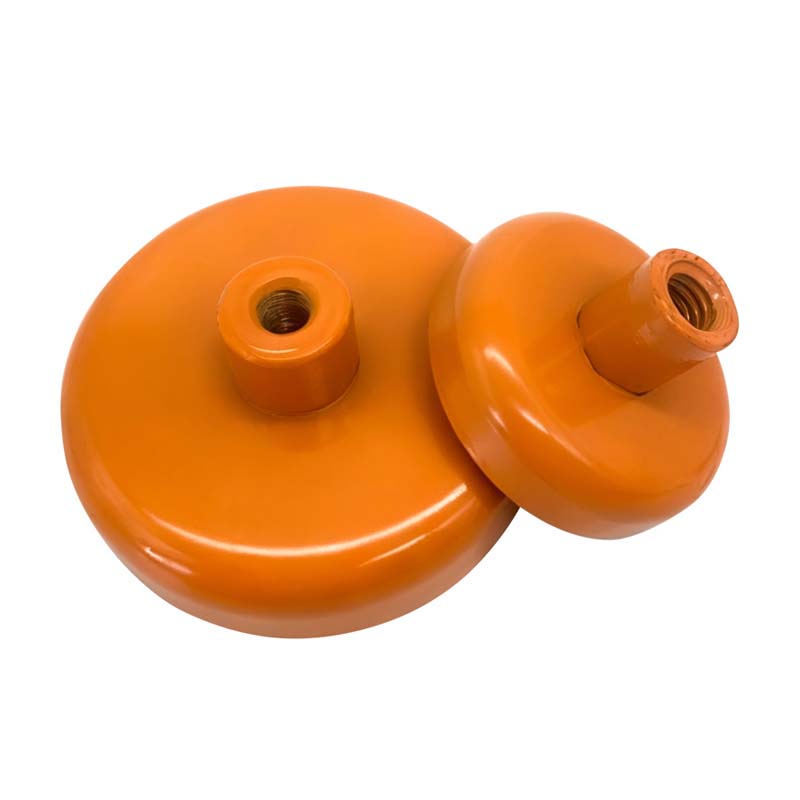

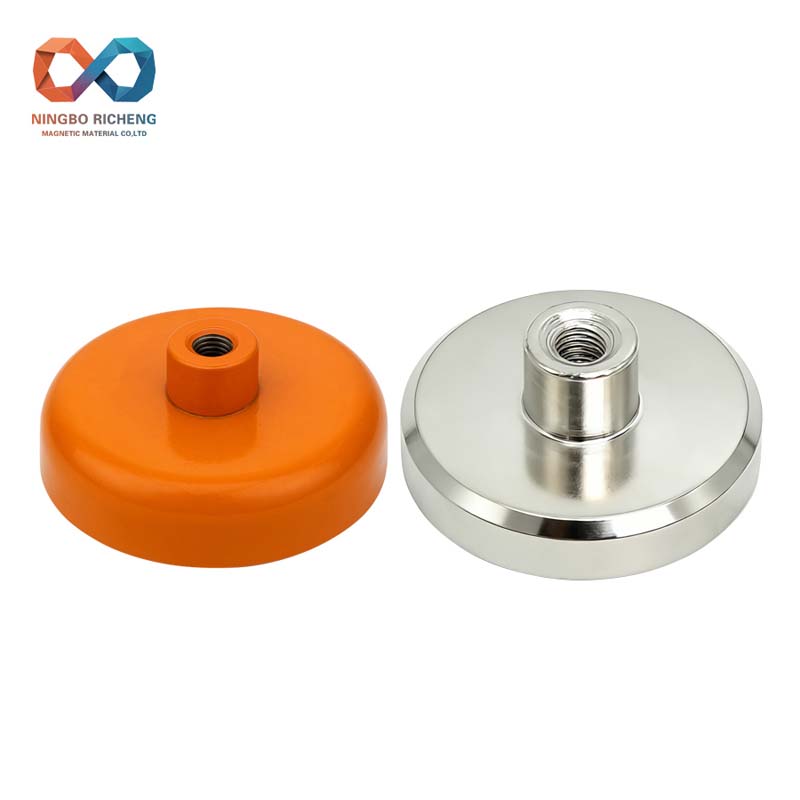

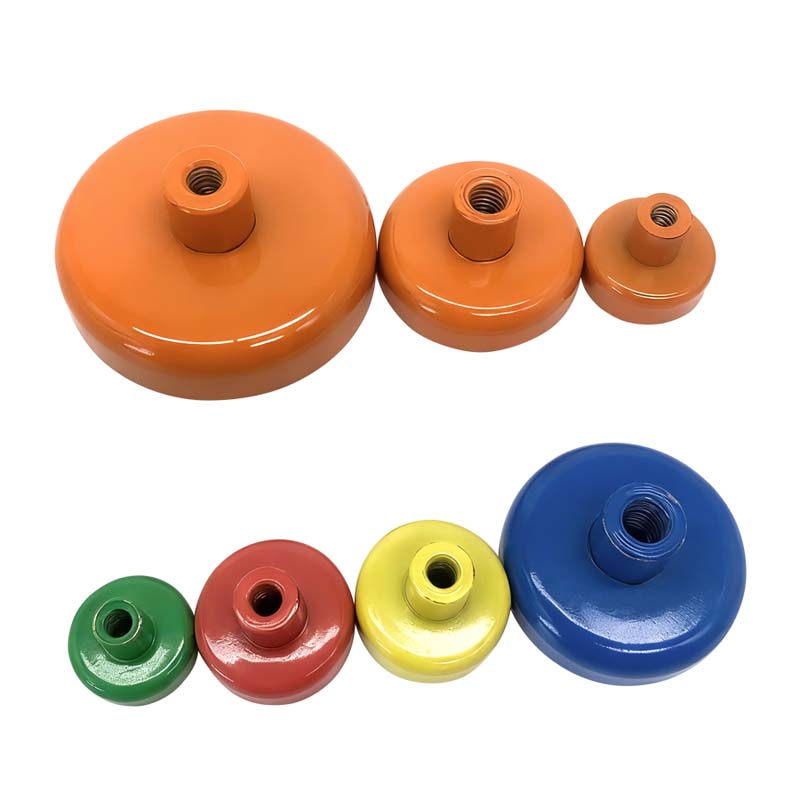

FERRITE POT magnet with internal thread (FD series)
Short Description:
Ferrite magnet is very common in our magnetic link area, it is cheap and has High-temperature resistance performance compared with NdFeB magnet. The pull force is from 1.5kg to 120kg, while the size of the pot is from 16mm to 125mm.
Product Detail
| Mode | D (mm) | d (mm) | H (mm) | L (mm) | M | Weight (g) | pull Force (kg) |
| FD16 | 16 | 6 | 4.5 | 11.5 | 4 | 6 | 1.8 |
| FD20 | 20 | 8 | 6 | 16 | 4 | 11 | 3 |
| FD25 | 25 | 8 | 7 | 15 | 5 | 20 | 4 |
| FD32 | 32 | 8 | 7 | 15 | 6 | 31 | 8 |
| FD36 | 36 | 8 | 7.5 | 16 | 6 | 42 | 10 |
| FD40 | 40 | 8 | 8 | 16.5 | 6 | 57 | 12.5 |
| FD47 | 47 | 8 | 9 | 17 | 6 | 86 | 18 |
| FD50 | 50 | 12 | 10 | 22 | 6 | 111 | 22 |
| FD57 | 57 | 12 | 10.5 | 22 | 6 | 153 | 28 |
| FD63 | 63 | 12 | 14 | 26 | 6 | 245 | 35 |
| FD80 | 80 | 12 | 18 | 28.5 | 6 | 477 | 60 |
| FD80 | 80 | 20 | 18 | 34 | 10 | 499 | 60 |
| FD100 | 100 | 22 | 22 | 43 | 12 | 956 | 90 |
| FD125 | 125 | 25 | 26 | 50 | 14 | 1720 | 130 |
