Classical magnetic hook (E series)
Short Description:
Magnetic Hooks offer an extensive range of holding strengths, from a subtle 1kg to a robust 350kg, catering to diverse needs from home organization and office use to heavy-duty industrial suspension. We understand that different applications demand specific capacities, which is why we provide comprehensive customization options for both size and magnetic pull, ensuring a perfect fit for your exact requirements.
To suit different situations, these magnetic hooks apply different hooks, some are closed, some have a safety lock.
Each hook is meticulously crafted using an advanced electroplating process, guaranteeing superior corrosion resistance and exceptional durability. This finish ensures the hooks remain pristine and functional even in humid or challenging environments.
Product Detail

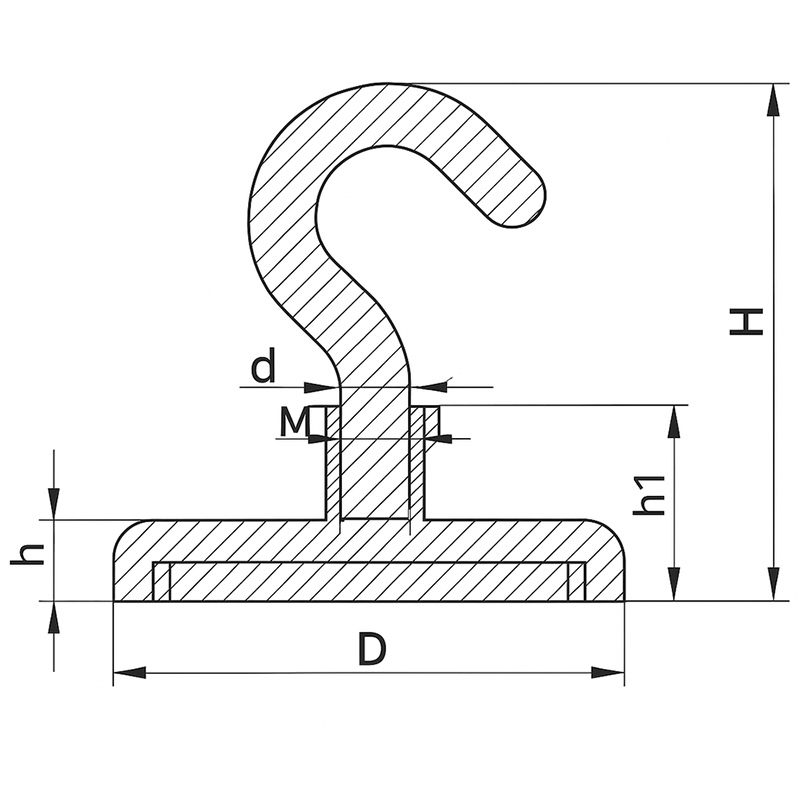

| Model | mm | M | mm | mm | mm | Weight(g) | Pull Forcekg) |
| PMYP-E10 | 10 | 3 | 34.5 | 12 | 4.5 | 4.6 | 1-2 |
| PMYP-E12 | 12 | 3 | 34.5 | 12 | 4.5 | 5.5 | 2-3 |
| PMYP-E16 | 16 | 4 | 36 | 12.5 | 5 | 9.8 | 6-8 |
| PMYP-E20 | 20 | 4 | 38 | 15 | 7 | 19 | 11-15 |
| PMYP-E25 | 25 | 5 | 45 | 15 | 8 | 32 | 20-25 |
| PMYP-E32 | 32 | 6 | 48 | 18 | 8 | 48 | 35-40 |
| Model | mm | M | mm | mm | mm | Weight (g) | Pull Force (kg) |
| PMYP-E36 | 36 | 6 | 50 | 18 | 8 | 62 | 40-50 |
| PMYP-E42 | 42 | 6 | 50 | 20 | 9 | 88 | 60-75 |
| PMYP-E48 | 48 | 8 | 61 | 23 | 11.5 | 165 | 85-100 |
| PMYP-E60 | 60 | 8 | 66 | 30 | 15 | 282 | 120-150 |
| PMYP-E75 | 75 | 10 | 84 | 32 | 18 | 530 | 220-250 |
| PMYP-E90 | 90 | 10 | 90 | 35 | 18 | 920 | 280-360 |
