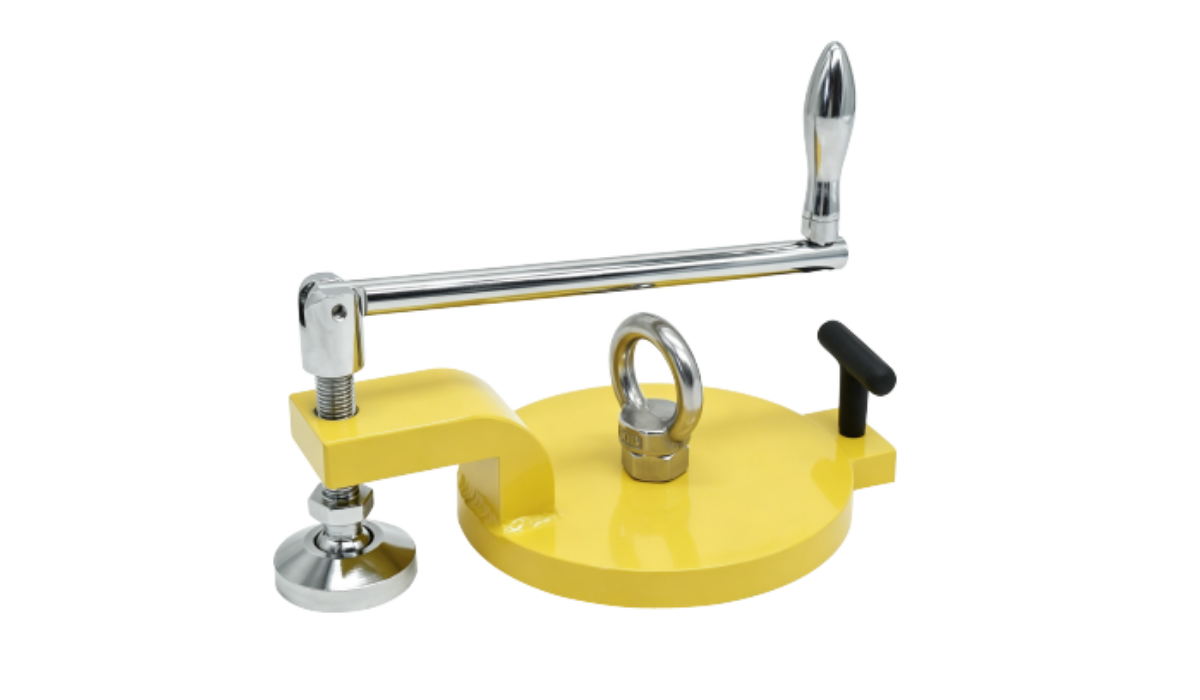

Anchor magnet (ZY-3-Y)
Short Description:
· RUGGED MAGNETIC CONSTRUCTION – This magnetic lifter is made with NdFeB magnet, with 1000~1100kg lifting capacity.
· BUILT IN POWERFUL MAGNET – Built-in large-size magnets, the magnetism is greatly enhanced, easy to release.
· HIGH STRENGTH GALVANIZED HOOK – High-strength chrome plating process, non-slip, durable, no deformation, no breakage.
· PAINTED APPEARANCE – The overall appearance of the paint is sprayed, the surface is smooth, which plays an effective anti-corrosion and anti-rust function.

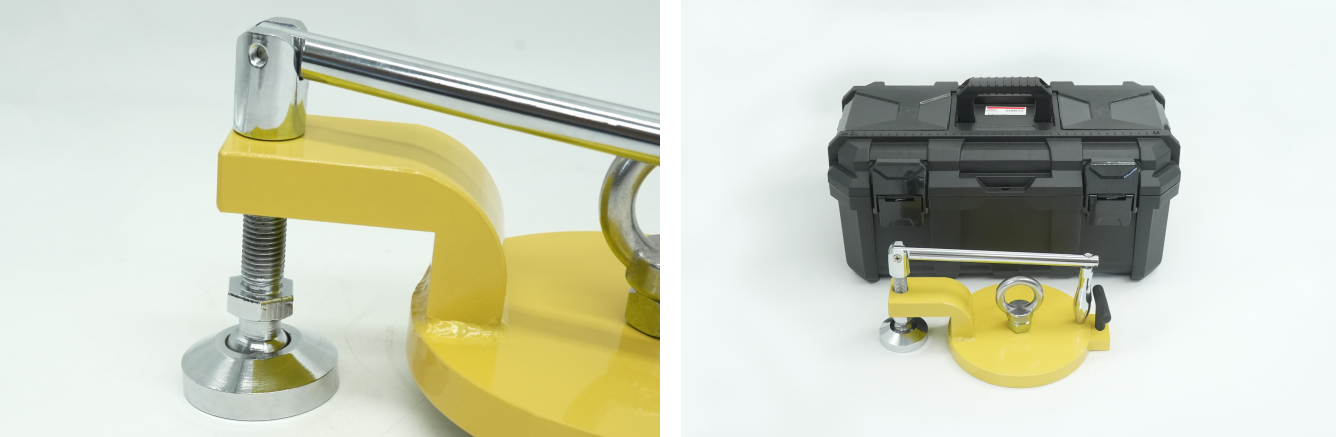

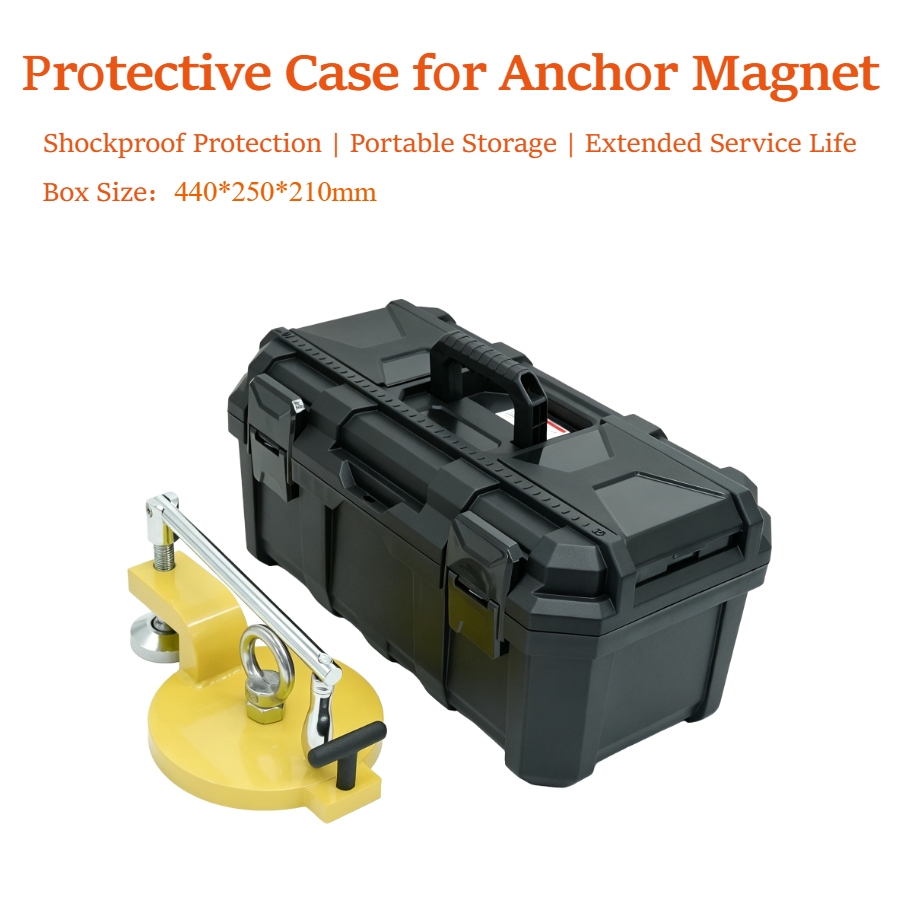

· ANCHOR MAGNET + SHOCKPROOF TOOL BOX– Magnetic Lifting Hook + Dedicated Storage Case All-in-One Kit, Hard shell case dustproof, drop-proof & shockproof for easy storage and transport.
· VARIOUS APPLICATION AREA – Anchor Magnetic is widely used in the transportation industry, docks and warehouses to improve the working conditions of loading and unloading operations and improve work efficiency.
Video
Product Detail
ANCHOR MAGNET
PRODUCT FEATURES
- 1.1 Ton Magnetic Force
- Heavy-Duty Anchoring
- Professional Release Mechanism
APPLICATION AREAS
- Heavy Steel Construction
- Marine Engineering
- Industrial Manufacturing
- Heavy Equipment Installation
ADVANTAGE COMPARISON
| Our Anchor Magnet | Traditional Anchors |
|---|---|
| 1.1T Anchor Magnet | Limited Strength |
| Magnetic Attachment | Mechanical Fixing |

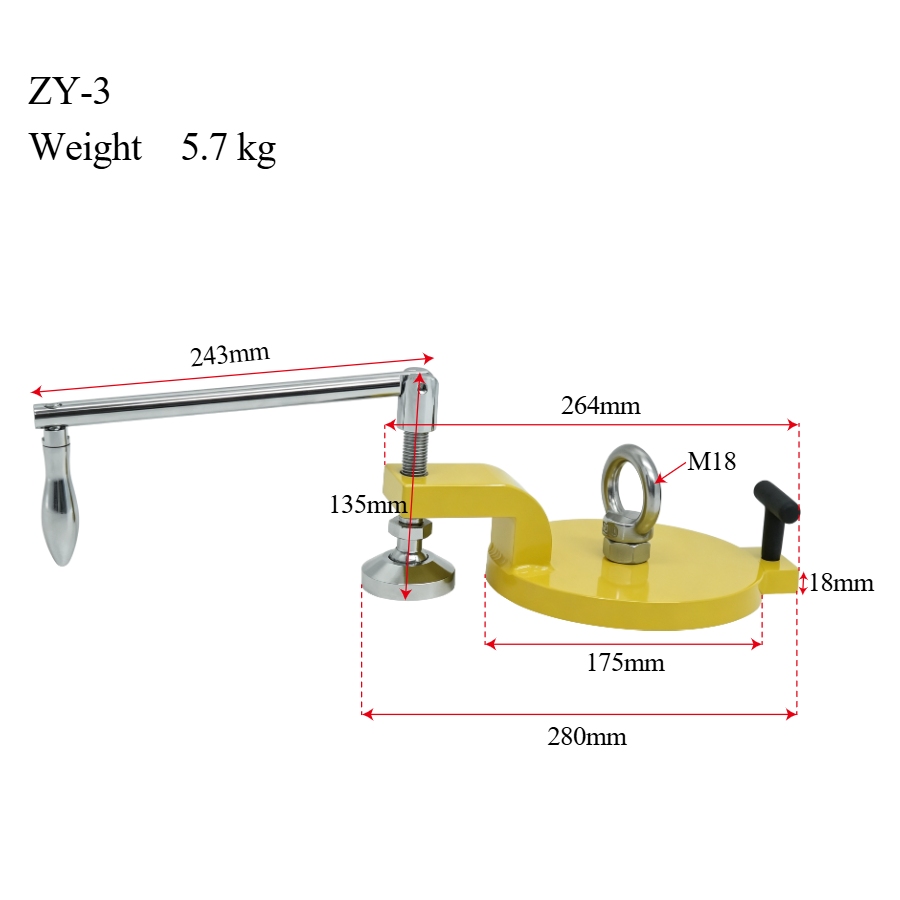

TECHNICAL SPECIFICATIONS
| Model | ZY-3 |
|---|---|
| Material | Industrial Grade Steel |

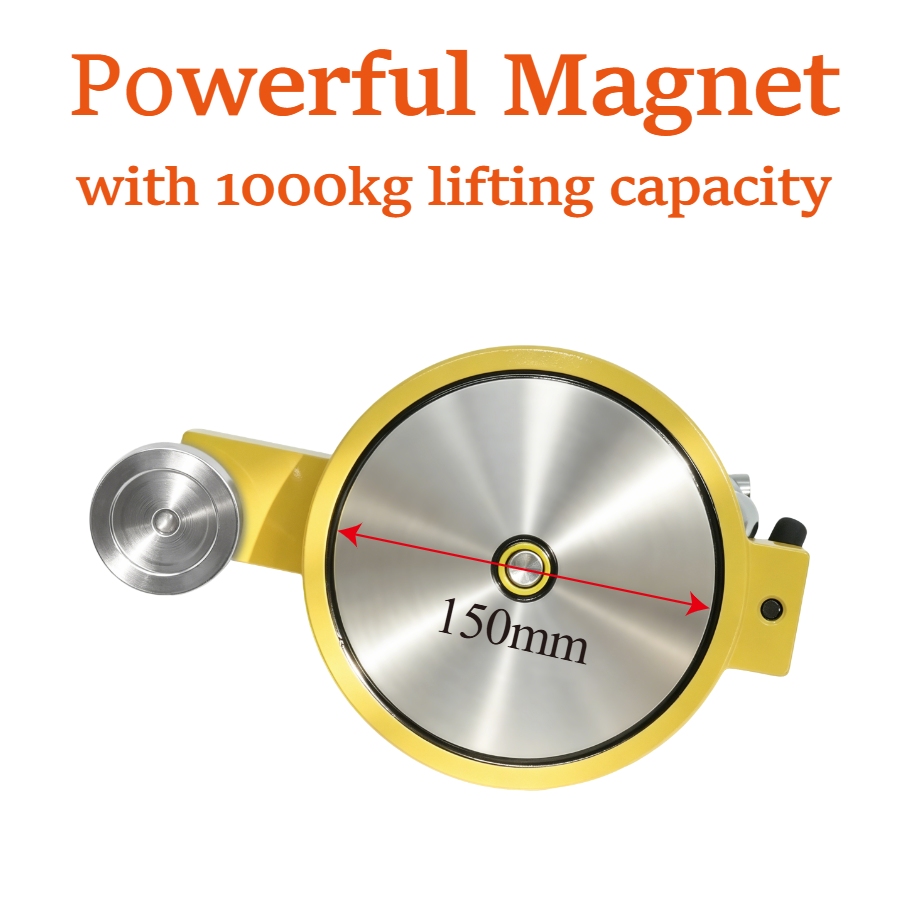

| Product Size | D150 × F280 × H135-H18 mm |
| Tension | 1000 ~ 1100 kg |

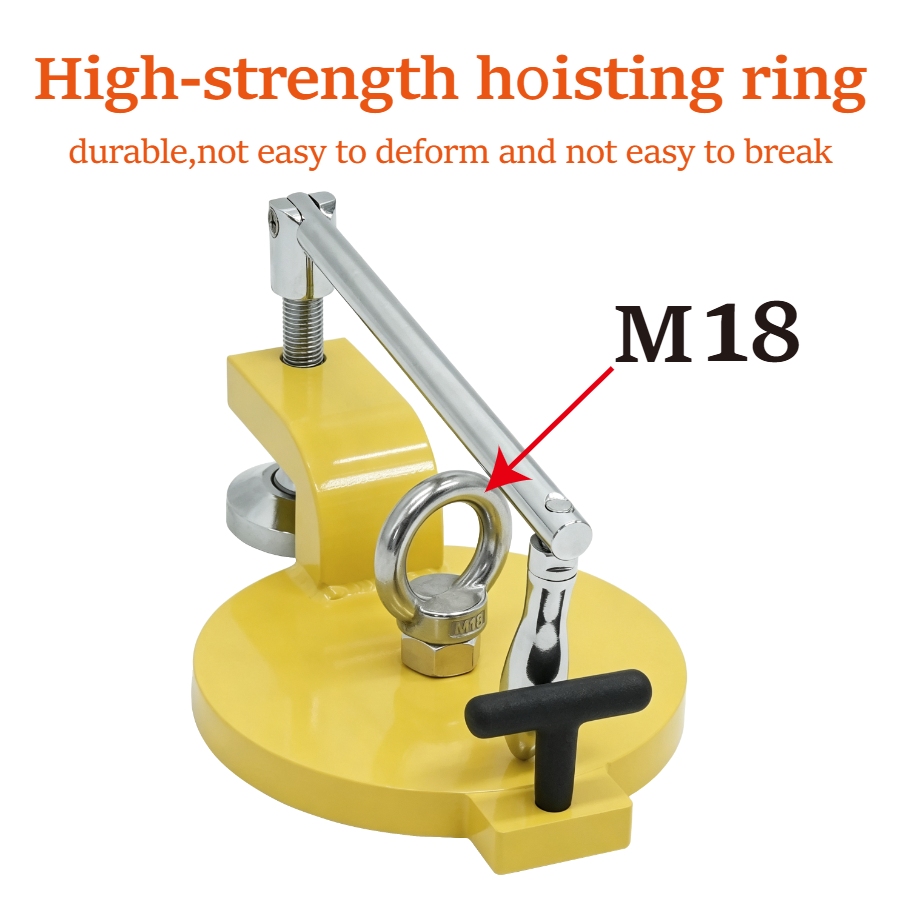

| Hanging Rings | M18 |
| Weight | 5.7 kg |
Anchor Magnetic
The magnetic lifter is used for lifting and handling steel materials, leveling mechanical parts and molds. Widely used in machinery, mold manufacturing, automobiles, shipbullding, storage terminal, factory workshop, construction siteoil industries and transportation industries.
Anchor magnet ZY-3 user manual
Warning: please don’t touch the bottom of the anchor with metal part.
Introduction: The anchor magnet is a strong anchor equipment, that owns more than 1000kg of pull force power.

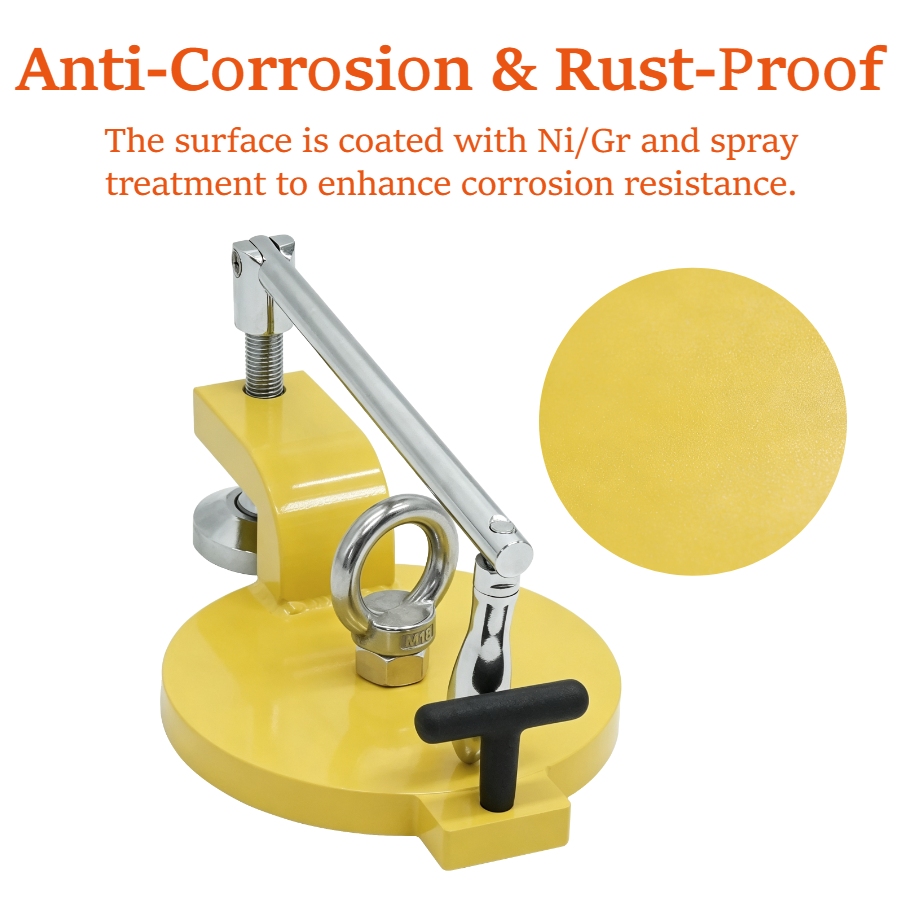

The surface is coated with Ni/Gr and spray treatment to enhance corrosion resistance.

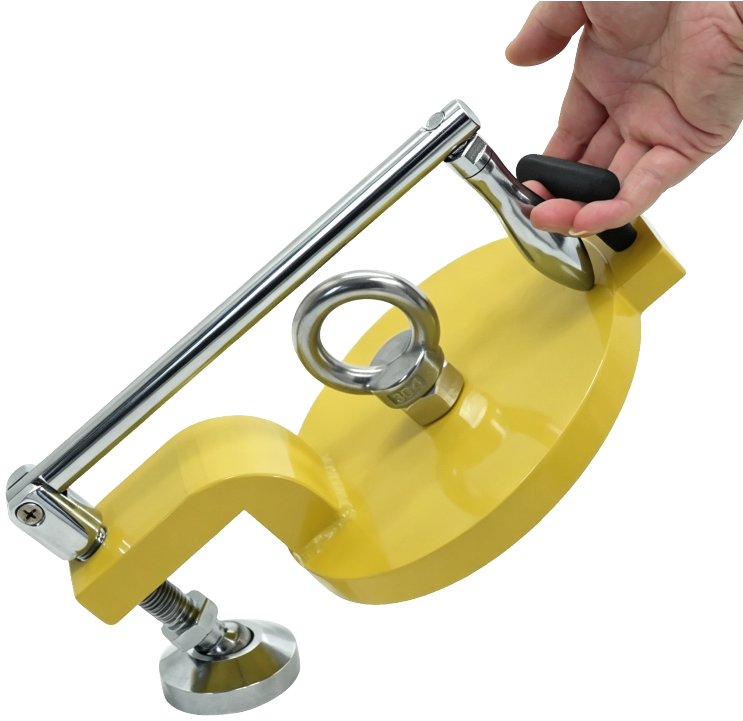

1. Remove the protect shell on the bottom,rotate the handle of the top clockwise, and make the bottom magnet part have at least the 8cm distance.
2. Put the anchor magnet on the steel surface with the foot in extended position.
3. Rotate the handles anticlockwise to make the anchor suck with the metal part slowly. Watch your fingers!
4. Use the rope to connect the ring of the top to fix the thing you need.

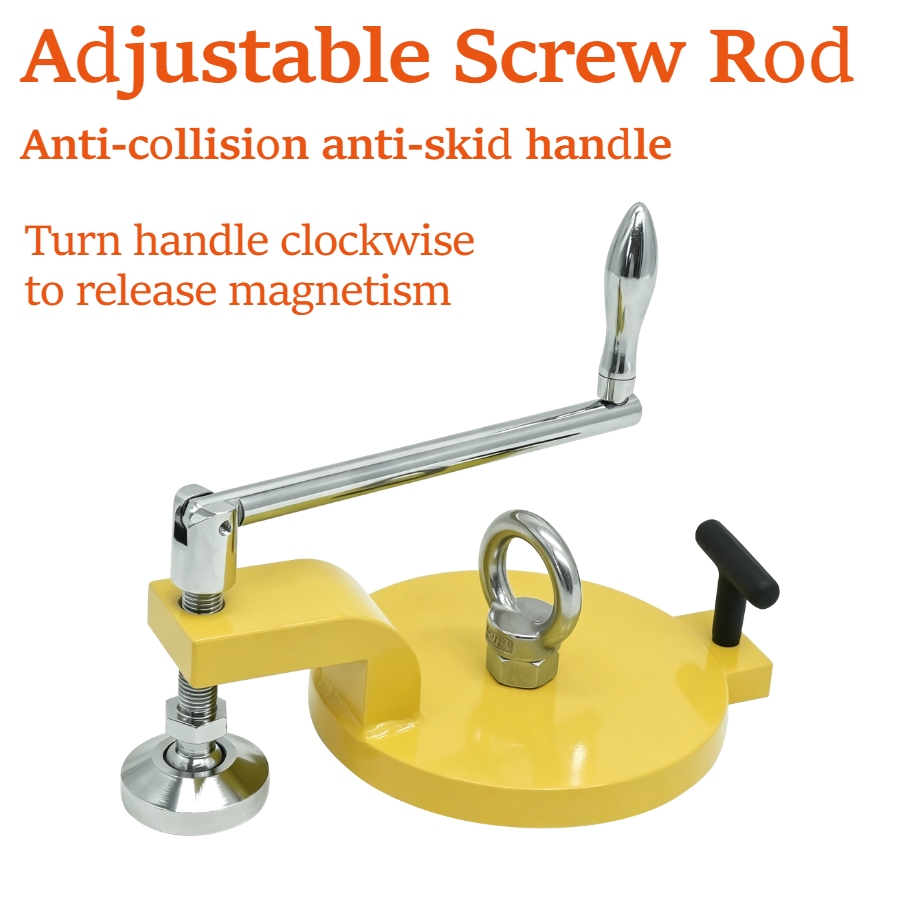

5. After using, rotate the handle clockwise to make the anchor away from the metal part.
6. Carefully remove the anchor,put the protect shell on and keep it in the case when not use.
