Anchor magnet (ZY-1-Y)
Short Description:

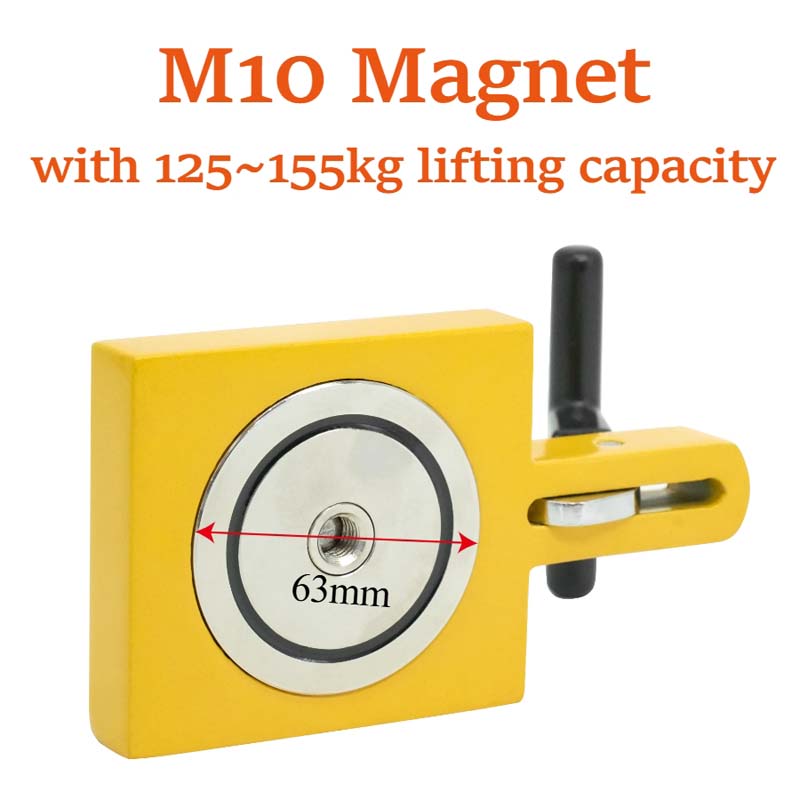

·RUGGED MAGNETIC CONSTRUCTION- This magnetic lifter is made with NdFeB magnet.,with 125~155kg lifting capacity.
·BUILT IN POWERFUL MAGNET-Built-in large-size magnets, the magnetism is greatly enhanced, easy to release.

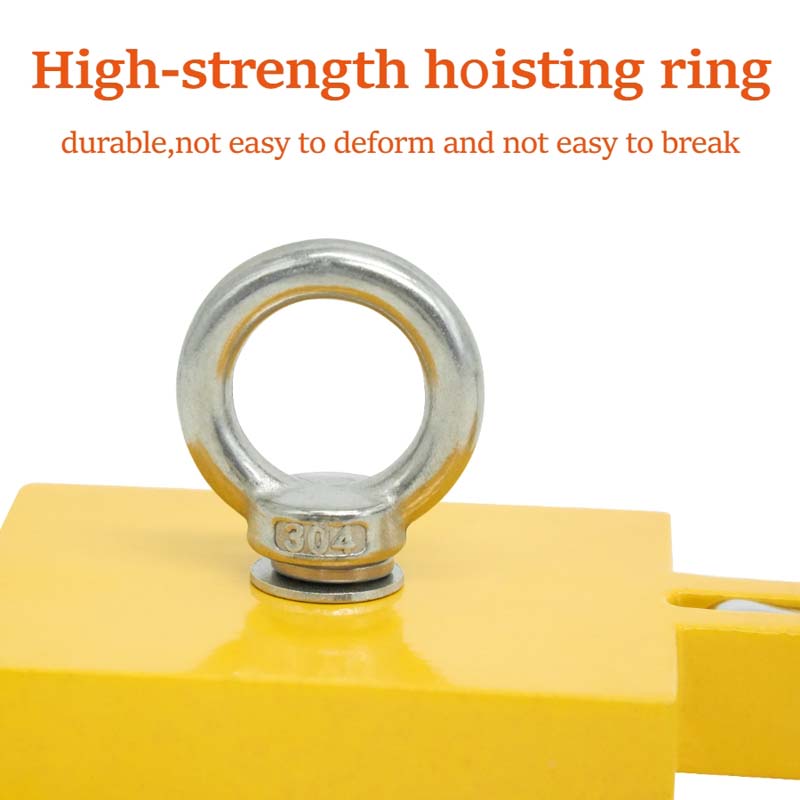

·HIGH STRENGTH GALVANIZED HOOK-High-strength chrome plating process, non-slip, durable, no deformation, no breakage.
·PAINTED APPEARANCE - The overall appearance of the paint is sprayed, the surface is smooth, which plays an effective anti-corrosion and anti-rust function.
·EASY TO USE- The unique design of the handle wrapped by rubber is for the safety of customers when using. Be anti-slip, anti-collision, and improve safety.
·VARIOUS APPLICATION AREA- Anchor Magnetic is widely used in the transportation industry , docks and warehouses to improve the working conditions of loading and unloading operations and improve work efficiency.
Video
Product Detail
ANCHOR MAGNET
PRODUCT FEATURES

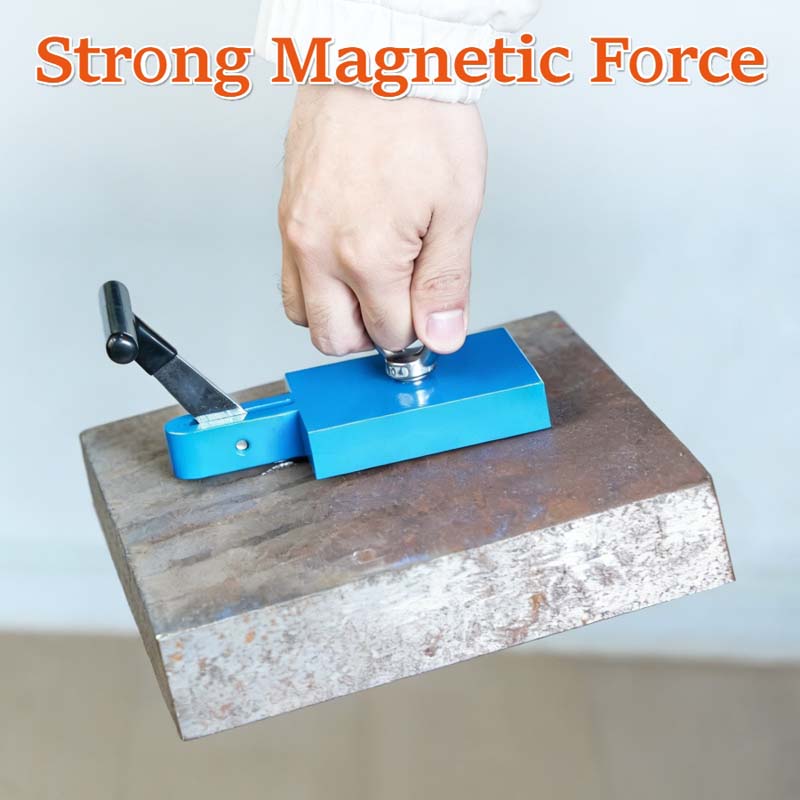

- Strong Anchoring Force
- Easy Release Operation
- Lightweight Design
APPLICATION AREAS
- Industrial Fixing Operations
- Heavy Equipment Installation
- Temporary Fixing Solutions
ADVANTAGE COMPARISON
| Our Anchor Magnet | Traditional Anchors |
|---|---|
| Hands-Free Operation | Requires Manual Adjustment |
| Extended Service Life | Easy to Wear Out |

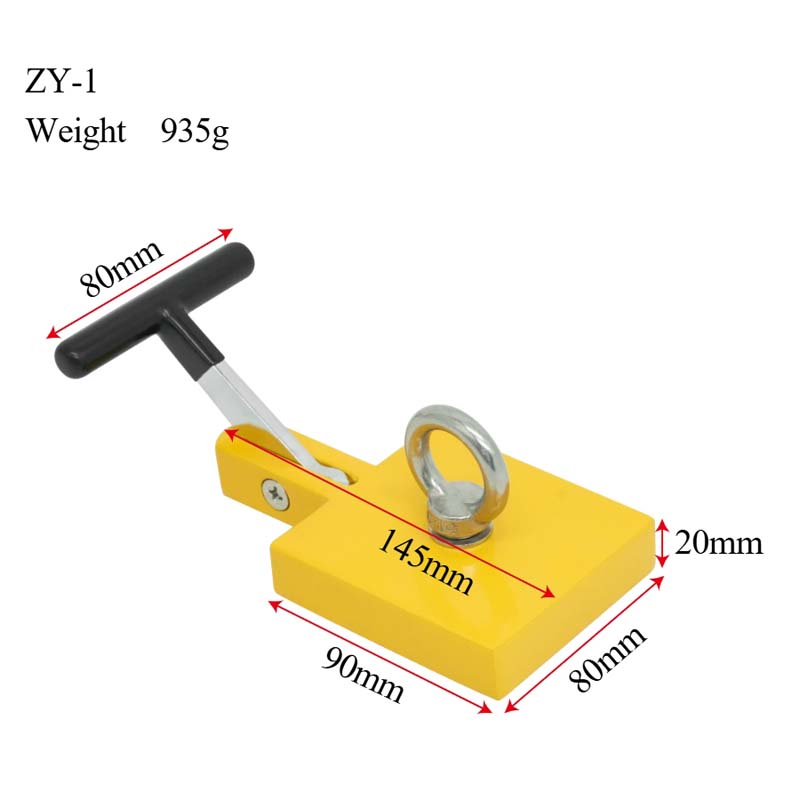

TECHNICAL SPECIFICATIONS
| Model | ZY-1 |
|---|---|
| Material | High-Strength Steel |
| Product Size | 145 × 80 × 20 mm |
| Tension | 125(B) ~ 155(A) kg |
| Hanging Ring | M10 |
| Weight | 935 g |
Anchor Magnetic

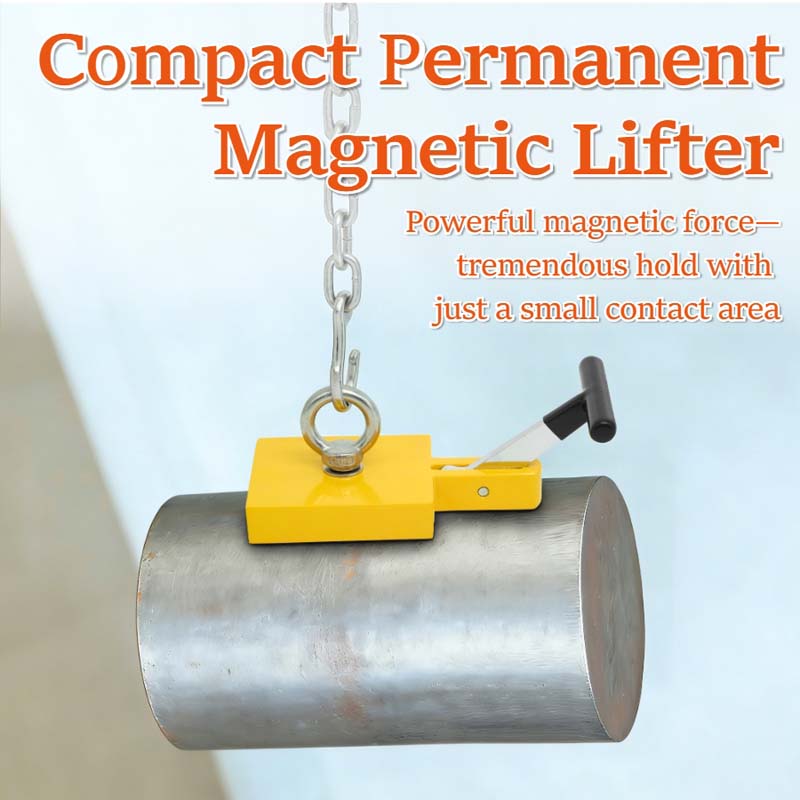

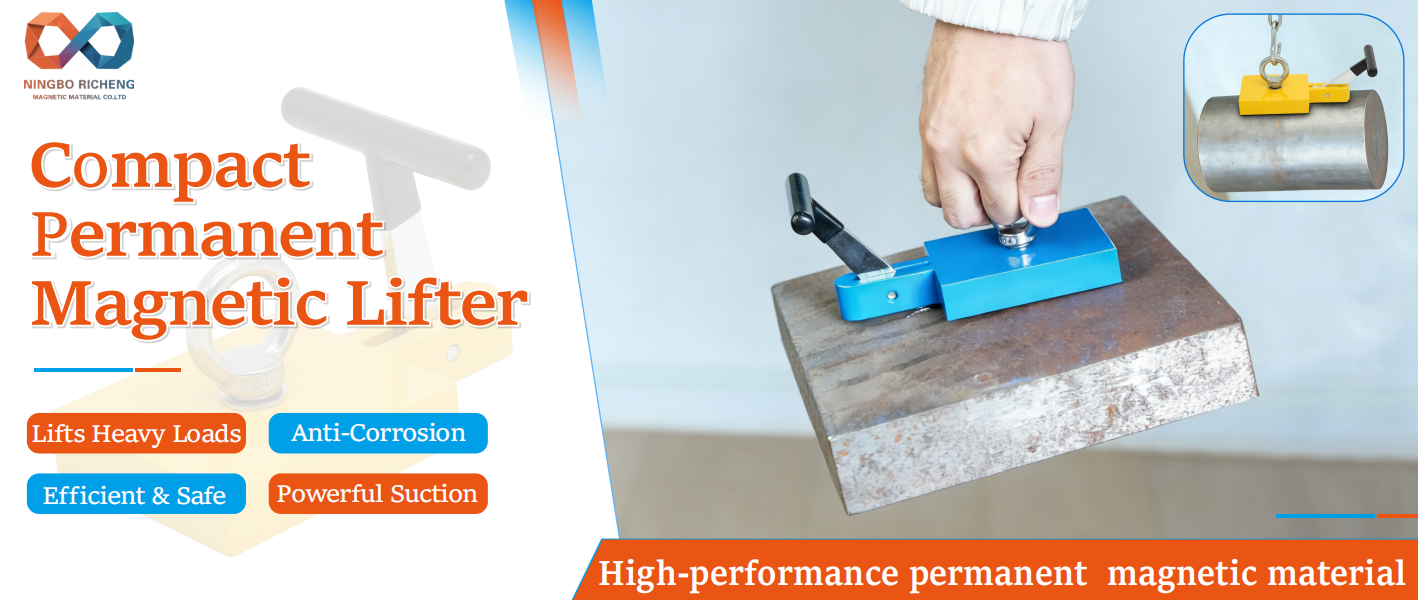

The magnetic lifter is used for lifting and handling steel materials, leveling mechanical parts and molds.widely used in machinery, mold manufacturing, automobiles, shipbullding, storage terminal,factory workshop, construction siteoil industries and transportation industries.
Anchor magnet ZY-1 user manual
Warning: please don’t touch the bottom of the anchor with metal part.
Introduction: this small anchor magnet is applied to fix the machine/equipment/ boat and so on, that owns more than 125kg of pull force power.
The surface is coated with Ni/Gr and spray treatment to enhance corrosion resistance.

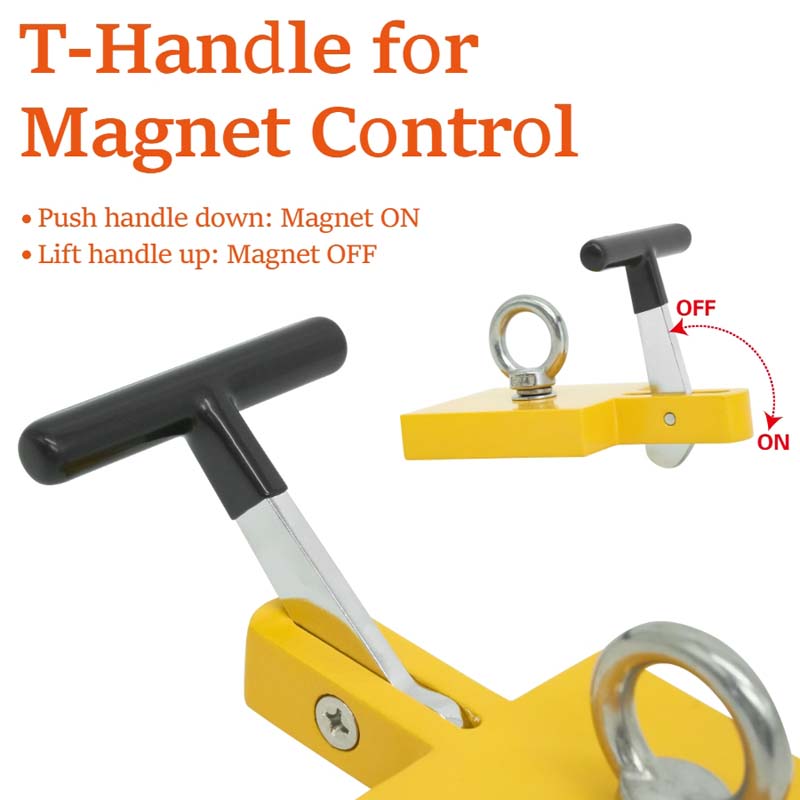

1: Lift up the handle
2: Put the anchor magnet on the steel surface with the foot in extended position.
3: Lay down the handle slowly.Watch your fingers!
4.Use the rope to connect the ring of the top to fix the thing you need.
5. After using, lift the handle to make the anchor away from the metal part.
6. Carefully remove the anchor, and keep it in the case when not use.
